Maxim Integrated MAX5535ETC+T Digital-to-Analog Converter

The MAX5535ETC+T from Maxim Integrated is a high-precision, low-power, 12-bit digital-to-analog converter (DAC) designed to deliver exceptional performance in a compact form factor. This device is specifically engineered to meet the stringent requirements of advanced industrial, communication, and consumer applications where space is at a premium and power efficiency is crucial.

At the heart of the MAX5535ETC+T lies its 12-bit resolution, which ensures fine granularity and accurate analog output for sensitive applications. This precision is maintained over the entire operating temperature range, making it a reliable choice for even the most demanding environments. With its integrated output amplifier, the DAC can drive loads directly, simplifying design and reducing component count.

The device operates from a single 2.7V to 5.5V power supply, making it versatile for various power schemes. Its low power consumption is a key feature, making it suitable for battery-operated devices where power efficiency is paramount. The MAX5535ETC+T also features a power-down mode, which further reduces power consumption when the DAC is not in active use.

Communication with the MAX5535ETC+T is facilitated through a 3-wire SPI-compatible serial interface, which allows for easy integration with microcontrollers and other digital systems. This interface not only simplifies the connectivity but also speeds up data transfer, enabling rapid updates to the DAC output.

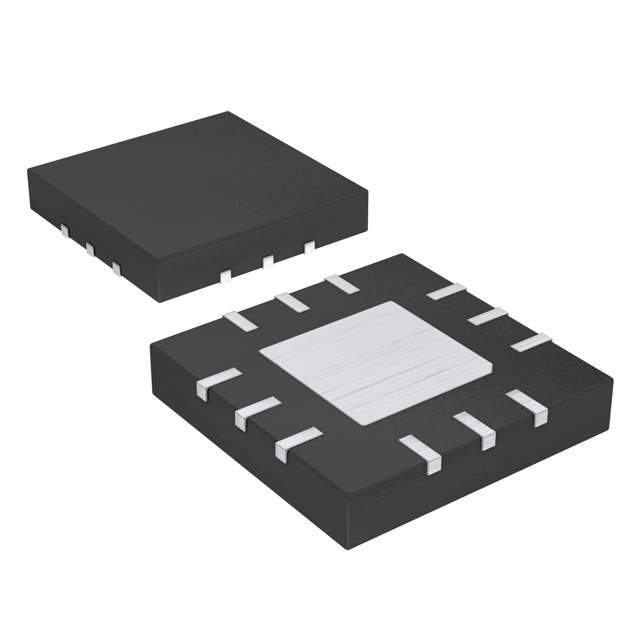

Maxim Integrated has packaged the MAX5535ETC+T in a compact 12-pin TDFN package, which is ideal for space-constrained applications. The small footprint of the package does not compromise its performance or reliability, making it an excellent choice for portable devices, high-density boards, and systems where board real estate is at a premium.

In summary, the MAX5535ETC+T is a versatile, high-performance DAC solution that combines precision, low power consumption, and ease of use in a small package. It is well-suited for a wide range of applications, including process control, data acquisition systems, portable instrumentation, and more, where accurate analog signal generation is required.
