Maxim Integrated's MAX6314US31D1+C3T Microprocessor Reset Circuit

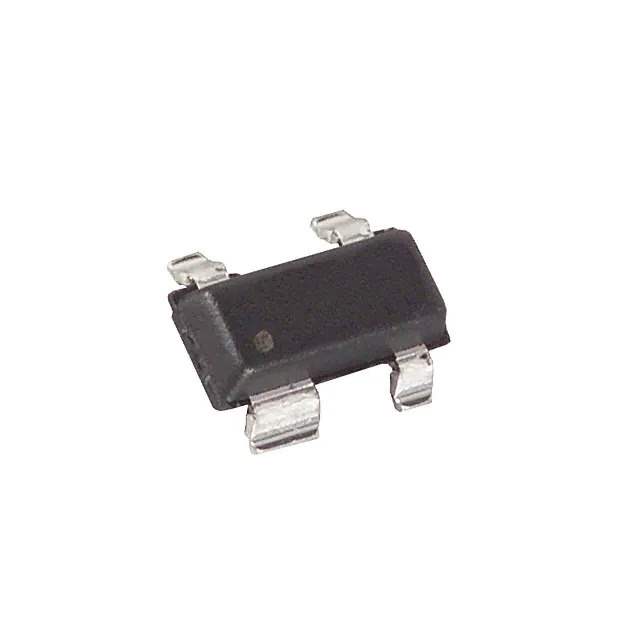

The MAX6314US31D1+C3T is a highly reliable and compact microprocessor (µP) supervisory circuit designed and manufactured by Maxim Integrated. This precision device is engineered to monitor power supplies in µP and digital systems, providing a significant level of protection by ensuring a proper reset operation during power-up, power-down, and brown-out conditions.

With its preset V<sub>CC detection threshold of 3.1V, the MAX6314US31D1+C3T is particularly suitable for 3.3V-powered systems. It delivers a robust solution for managing system integrity and preventing processor malfunction or data corruption due to unpredictable power supply issues. Its small SOT-143 package makes it an excellent choice for space-constrained applications where board real estate is at a premium.

One of the key features of this device is its integrated watchdog timer, which can be disabled if not required, offering flexibility in system design. The reset output is guaranteed to remain in the active state for a minimum of 140ms (typical) after V<sub>CC has risen above the reset threshold level, ensuring sufficient time for the µP to stabilize and initialize correctly.

The MAX6314US31D1+C3T operates over a wide temperature range of -40°C to +85°C, making it suitable for use in diverse environments, from industrial to commercial applications. Its low supply current of 1.5µA (typical) is particularly beneficial for portable and battery-powered devices, helping to extend operational life.

Designed with a debounced manual reset input, this supervisory circuit allows for a manual system reset, providing additional control to system operators. The device's robustness is further enhanced by its immunity to short V<sub>CC transient glitches, ensuring reliable operation even in the face of supply noise and fluctuations.

In summary, Maxim Integrated's MAX6314US31D1+C3T is a feature-rich, highly reliable reset circuit that offers excellent protection for digital systems, ensuring they operate within safe parameters. Its combination of low power consumption, compact design, and high precision makes it an ideal choice for a wide range of applications requiring robust µP supervision.
