Maxim Integrated Product Overview: MAX6384XS23D3

The MAX6384XS23D3 is a robust, high-quality microprocessor (µP) supervisory circuit designed and manufactured by Maxim Integrated, a leader in the development of innovative analog and mixed-signal products. This supervisory circuit is engineered to monitor the power supply voltages in digital systems and ensure proper system operation by providing a reset signal to the µP during power-up, power-down, and brownout conditions.

Key Features

• Precision Voltage Monitoring: The MAX6384XS23D3 offers precise monitoring of the 2.3V power supply voltage, ensuring that the connected microprocessor operates within its specified voltage range for optimal performance.
• Low Power Consumption: Designed for power-sensitive applications, this device consumes minimal power, thus contributing to the overall energy efficiency of the system it is integrated into.
• Manual Reset Input: It provides a manual reset input, allowing for an external trigger to reset the system, which can be useful for system maintenance or in the event of a software freeze.
• Reset Timeout: The device features a factory-trimmed reset timeout delay, which ensures that the system has sufficient time to stabilize before the microprocessor starts its operation.
• High Temperature Operation: The MAX6384XS23D3 is capable of operating over a wide temperature range, making it suitable for use in environments with varying temperature conditions.

Applications

The versatility of the MAX6384XS23D3 makes it an ideal choice for a wide array of applications, including but not limited to:

• Portable/Battery-Powered Equipment
• Embedded Systems
• Industrial Controllers
• Automotive Systems
• Networking and Telecom Infrastructure

Package and Reliability

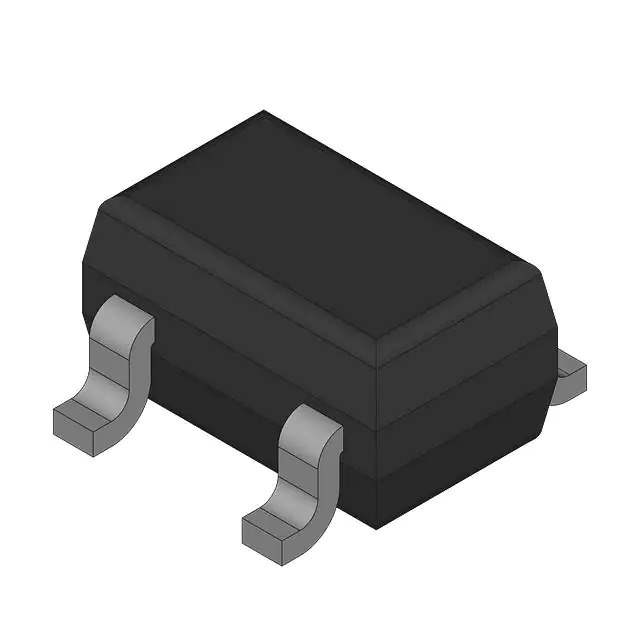

The MAX6384XS23D3 is offered in a compact, space-saving 4-pin SC70 package which is suitable for space-constrained applications. Maxim Integrated's commitment to quality ensures that this supervisory circuit maintains high reliability and performance standards, making it a trusted component for critical system monitoring functions.

Overall, the MAX6384XS23D3 from Maxim Integrated provides a simple, efficient, and reliable solution for µP system monitoring, helping to safeguard system integrity and prevent data loss or corruption due to power supply anomalies.
