Product Overview: MAX6384XS29D1

The MAX6384XS29D1 is a robust, precision microprocessor (µP) supervisory circuit designed by Maxim Integrated to monitor power supplies in digital systems. It provides excellent circuit reliability and low cost by eliminating external components and adjustments when used in systems that require voltage monitoring.

Key Features

• Precision Monitoring: The device offers precise monitoring of +2.9V power supplies, ensuring that the system operates within the desired voltage range.
• Reset Output: The MAX6384XS29D1 features an active-low reset output which remains asserted for a minimum of 140ms after VCC has risen above the reset threshold. This provides a reliable startup delay for microprocessors.
• Low Power Consumption: Designed for power-sensitive applications, it consumes minimal power, making it an ideal choice for portable and battery-operated devices.
• Manual Reset Input: A manual reset input is provided, allowing the user to trigger a reset with an external switch or logic signal, offering additional system control.
• High Threshold Accuracy: The device features a high threshold accuracy of ±1.5% over the entire temperature range of -40°C to +125°C, ensuring reliable operation under varying conditions.

Applications

The MAX6384XS29D1 is versatile and can be used in a wide range of applications, including:

• Portable/Battery-Powered Equipment
• Computers and Controllers
• Embedded Systems
• Industrial Equipment
• Telecommunication Systems

Package and Quality

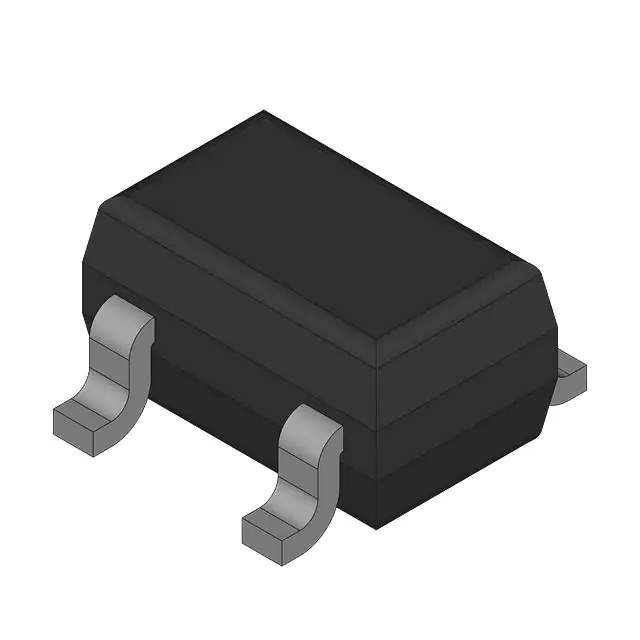

The device is available in a compact, 4-pin SC70 package, making it suitable for space-constrained applications. Maxim Integrated ensures high-quality standards, and the MAX6384XS29D1 is no exception, meeting stringent industrial quality criteria for performance and reliability.

Conclusion

Overall, the MAX6384XS29D1 from Maxim Integrated is a dependable solution for systems that require accurate voltage monitoring and a controlled power-on reset functionality. Its combination of features, compact form factor, and high accuracy makes it a valuable component for a wide array of electronic applications.
