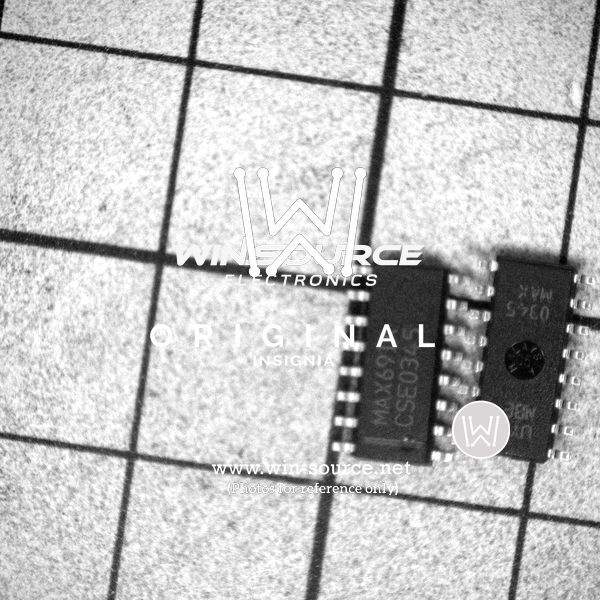

Product Overview: MAX691ACSE from Maxim Integrated

The MAX691ACSE from Maxim Integrated is a sophisticated microprocessor (µP) supervisory circuit designed to manage power supply and digital system integrity. This device is particularly beneficial for systems that require a reliable operation and protection against uncertain power supply conditions. It is commonly used in microprocessor-based systems, computers, controllers, and intelligent instruments.

The MAX691ACSE integrates several key features that make it an essential component for system management:

• Power-On Reset Control: The MAX691ACSE ensures that the µP powers up in a known state by providing a reset signal to the µP during power-up, power-down, and brownout conditions. The reset output remains operational with VCC as low as 1V.
• Watchdog Timer: To prevent system failures due to software glitches, the MAX691ACSE incorporates a watchdog timer that must be periodically cleared by the µP. If the µP fails to clear the timer within a preset timeout period, the device generates a system reset, thereby providing an additional layer of reliability.
• Backup Battery Switchover: In the event of a primary power failure, the MAX691ACSE automatically switches to a backup battery, ensuring uninterrupted power supply to the memory and real-time clock components.
• Low Power Consumption: Designed for power-sensitive applications, the MAX691ACSE utilizes low power CMOS technology, which minimizes the power draw from the system.
• Voltage Monitor: The device includes a precision voltage monitor that tracks the system voltage levels and ensures that the system operates within the acceptable voltage range.

The MAX691ACSE comes in a 16-pin narrow SO package, making it compact and suitable for space-constrained applications. Its operating temperature range of 0°C to +70°C allows for deployment in various environmental conditions.

With its combination of reset logic, battery backup management, watchdog timer, and voltage monitoring, the MAX691ACSE from Maxim Integrated provides a comprehensive solution for enhancing system reliability and preventing data loss due to power supply anomalies. It is an invaluable component for any design that demands high-reliability supervision of its power supply and processor operation.
