The MAX6957AAX+T from Maxim Integrated is a versatile and high-performance LED display driver and I/O expander that offers a seamless interface for driving up to 16 individual LED displays or 64 discrete LEDs. This compact, serially interfaced device is designed to add minimal loading to the microprocessor (MPU), microcontroller (MCU), or I²C bus, making it an ideal solution for applications where additional I/Os are needed for display and control purposes.

Key Features

• Integrated LED Driver: Capable of driving 16-segmented displays or 64 discrete LEDs with individual LED intensity control.
• Serial Interface: Features a 2-wire, I²C-compatible serial interface that minimizes the number of pins required for operation and simplifies PCB layout.
• Flexible Power Supply: Operates from a 2.7V to 5.5V power supply, making it suitable for a wide range of applications, including battery-operated devices.
• Configurable I/O Ports: Contains 28 open-drain I/O ports that can be configured as either key-switch inputs or LED drivers, providing extensive versatility.
• Transition Detection: Possesses key-switch debounce and transition detection on all key-switch inputs to reduce the processing overhead on the host microcontroller.
• Thermal Protection: Includes built-in thermal shutdown protection to safeguard the device under extreme operating conditions.

Applications

The MAX6957AAX+T is ideal for a variety of applications where LED display control and additional I/Os are required. It is commonly used in:

• Industrial control panels
• Instrumentation displays
• Set-top boxes
• Automotive dashboards
• Professional audio equipment

Quality and Reliability

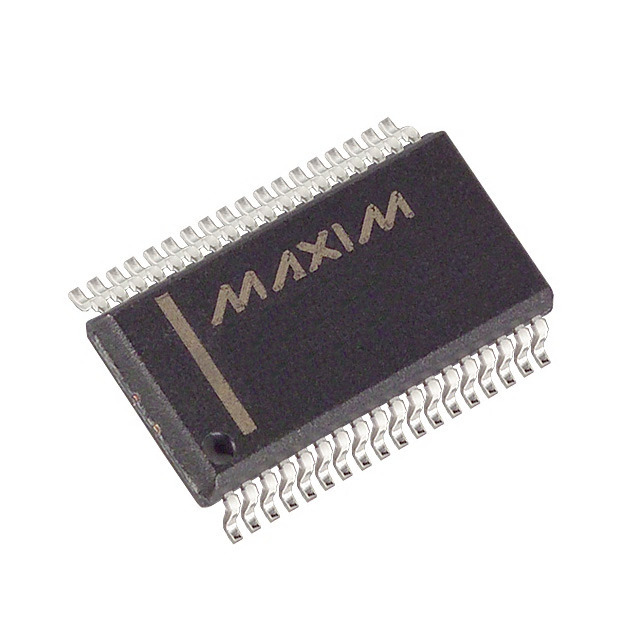

Maxim Integrated ensures high quality and reliability for the MAX6957AAX+T, offering robust performance for critical applications. The device is available in a compact 36-pin SSOP package, which provides a space-saving solution for modern electronic designs.

With its rich feature set and Maxim Integrated's reputation for quality, the MAX6957AAX+T is a superior choice for designers looking to enhance their system's display capabilities and I/O functionality without significant cost or complexity.
