Maxim Integrated's MAX8836ZEWEEE+ LED Driver

The MAX8836ZEWEEE+ from Maxim Integrated is a high-performance, integrated power-management IC designed specifically for driving white LEDs with precision and efficiency. This compact, feature-rich device is ideal for portable applications where space is at a premium and power efficiency is crucial, such as smartphones, tablets, and other handheld devices.

At the core of the MAX8836ZEWEEE+ is an adaptive charge pump that provides a regulated current to up to four white LEDs for uniform brightness. The charge pump can operate in 1x, 1.5x, or 2x mode, automatically switching between modes based on LED forward voltage requirements to maintain optimal efficiency. This adaptability ensures consistent light output while maximizing battery life.

The device offers a wide input voltage range from 2.6V to 5.5V, making it versatile for various power sources. The MAX8836ZEWEEE+ employs a 1MHz fixed-frequency switching to minimize the size of external components and avoid interference with critical RF bands, which is particularly important in wireless applications.

Users can adjust the brightness of the LEDs through a precision dimming control. The dimming is achieved either through a PWM (Pulse Width Modulation) input or through a direct I2C-compatible interface, providing developers with flexibility in controlling the light output. This feature allows for seamless integration with user interfaces that require varying levels of brightness, such as backlighting for screens and keypads.

Built-in safety features of the MAX8836ZEWEEE+ include overvoltage protection, thermal shutdown, and open/short LED detection, which safeguard the device and the LEDs from electrical stress and thermal conditions that could otherwise lead to premature failure.

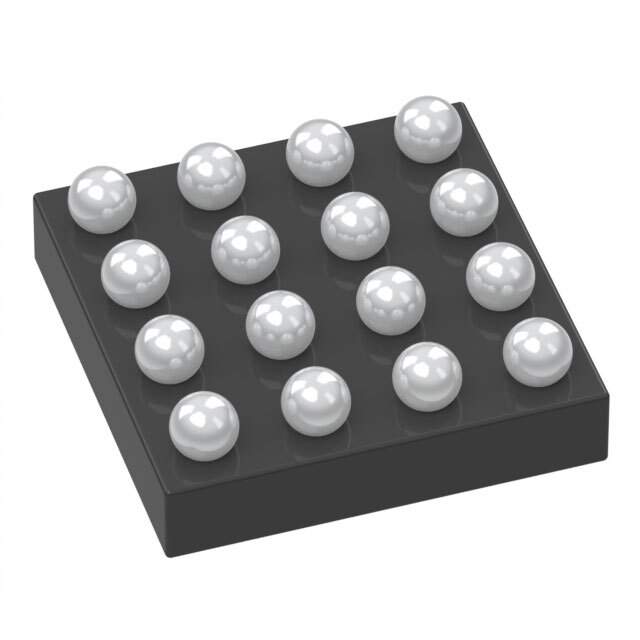

The MAX8836ZEWEEE+ comes in a compact, 20-pin WLP (Wafer-Level Package) that is just 2.15mm x 2.15mm, making it one of the smallest solutions available for LED driving. This small footprint allows designers to free up board space for additional features or to create smaller, more streamlined products.

In summary, the MAX8836ZEWEEE+ from Maxim Integrated is a sophisticated, high-efficiency LED driver that offers advanced features in a tiny package, perfect for the latest generation of portable electronics where performance and space are at a premium.
