Maxim Integrated MAX9406ETJ+T High-Speed Level Shifter

The MAX9406ETJ+T from Maxim Integrated is a high-performance, low-skew, single-supply level translator ideal for applications that require high data rates and level shifting. This device is specifically designed to handle the level transition from low-voltage digital signals to higher voltage digital signals, making it an essential component in mixed-voltage systems.

Featuring a 26-bit, one-to-two level translating buffer/repeater, the MAX9406ETJ+T operates with a single +3.3V supply voltage and is capable of translating signals as low as 0.8V up to 3.3V/5V levels. This flexibility makes it suitable for interfacing between low-voltage FPGAs or SOCs with higher voltage peripheral components.

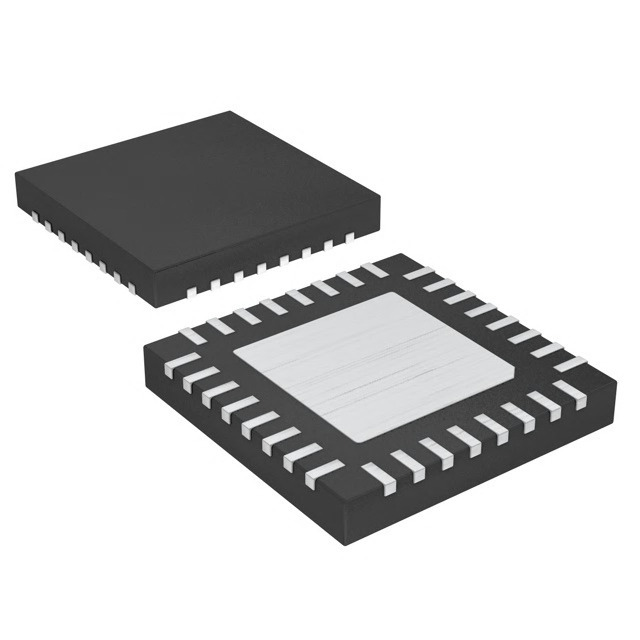

The MAX9406ETJ+T comes in a compact 32-pin TQFN package, offering a space-saving solution for dense circuit boards. Its small footprint does not compromise its performance, as it delivers high-speed signal translation with minimal propagation delay and channel-to-channel skew, which is critical for maintaining signal integrity in high-speed data interfaces.

One of the key features of the MAX9406ETJ+T is its support for hot insertion and hot swapping, which allows for the addition or removal of components without the need to power down the system. This feature is particularly useful in server farms, networking equipment, and other systems where uptime is crucial.

Additionally, the device includes integrated electrostatic discharge (ESD) protection circuitry, which safeguards against damage from static electricity, enhancing the reliability and longevity of the product. The MAX9406ETJ+T also offers a fail-safe feature that ensures the output is in a high-impedance state when the input is open, further protecting the device and connected components.

Overall, the Maxim Integrated MAX9406ETJ+T is an excellent choice for designers who need a robust, high-speed level shifter that can handle the demands of modern digital systems. Its combination of performance, compact size, and protective features make it a versatile and dependable component for a wide range of applications.
