Maxim Integrated MAX9504BELT+T Video Filter Amplifier

The MAX9504BELT+T from Maxim Integrated is a high-quality video filter amplifier designed to enhance video signal quality in a variety of applications. This small, low-power device is perfect for portable and compact electronics where space is at a premium and power efficiency is crucial.

The MAX9504BELT+T features a 2-pole lowpass filter with a 9MHz cutoff frequency, which is ideal for anti-aliasing or reconstruction filtering in video applications. With its integrated reconstruction filter, the device can effectively reduce noise and improve image quality, making it an excellent choice for use in digital cameras, video recorders, and other multimedia devices.

This component is designed to operate from a single 2.5V to 3.6V supply, providing designers with flexibility in terms of power management. Its low quiescent current consumption is advantageous for battery-powered devices, helping to extend operational times between charges.

One of the standout features of the MAX9504BELT+T is its ability to drive two video loads simultaneously, which simplifies the design of video output stages in multi-display systems. The device also includes an internal charge pump that generates a negative voltage, allowing for the output to swing below ground and thus eliminating the need for external capacitors or a negative power supply.

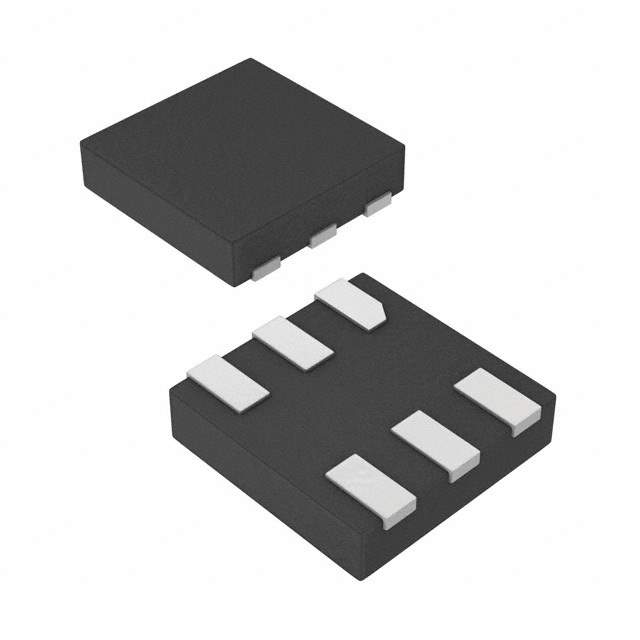

For ease of integration, the MAX9504BELT+T comes in a tiny 6-pin thin DFN package, which is not only space-saving but also offers excellent thermal performance. The component is also fully specified over the -40°C to +85°C extended temperature range, ensuring reliable operation in diverse environmental conditions.

Maxim Integrated's commitment to quality means that the MAX9504BELT+T is designed and manufactured to meet the highest standards. Whether you're developing consumer electronics, security systems, or automotive infotainment systems, this video filter amplifier is a robust solution that will help deliver superior video quality to your end users.
