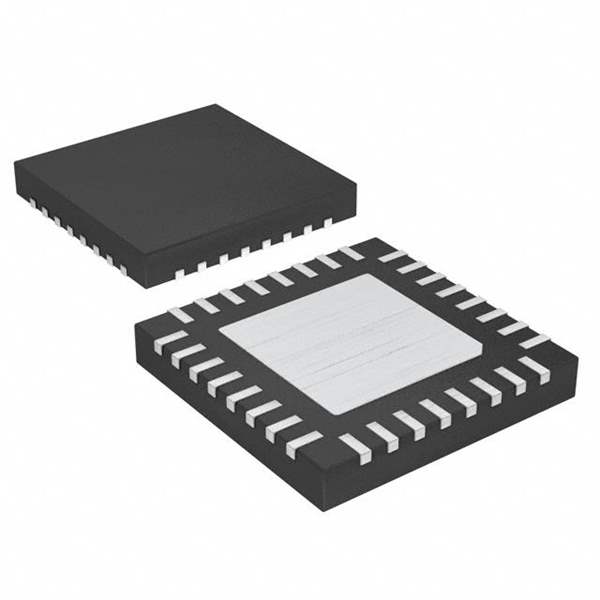

The MAX9789AE from Maxim Integrated is a highly versatile audio solution designed to cater to the needs of compact multimedia applications. This integrated circuit combines a mono Class D speaker amplifier with a stereo Class H headphone amplifier, making it an ideal choice for portable devices where space and power efficiency are critical considerations.

Key Features

• High Efficiency: The Class D speaker amplifier provides high efficiency, which is crucial for battery-powered devices, reducing power consumption and extending battery life.
• Flexible Audio Outputs: It includes a mono speaker output capable of delivering up to 1.4W into an 8Ω load and a stereo headphone amplifier that supports Class H operation.
• Advanced Sound Enhancement: The MAX9789AE features Maxim's proprietary Active Emissions Limiting (AEL) circuitry, which minimizes EMI and eliminates the need for output filters, saving board space and component costs.
• Comprehensive Protection: The device is equipped with built-in thermal overload protection, short-circuit protection, and a click-and-pop suppression mechanism to ensure reliable operation and enhance the user experience.

Applications

This IC is well-suited for a variety of applications that require high-quality audio output with minimal power usage. It is commonly used in:

• Mobile Phones
• Portable Media Players
• Notebook Computers
• Portable Gaming Devices

Technical Specifications

The MAX9789AE operates from a 2.7V to 5.5V supply voltage, making it compatible with most standard battery technologies. It also supports a wide array of audio inputs, including differential and single-ended signals, providing designers with the flexibility to integrate the amplifier into a variety of audio signal chains.

Conclusion

The Maxim Integrated MAX9789AE stands out as an efficient and compact audio amplification solution, ideal for the latest generation of portable devices. Its integration of both speaker and headphone amplifiers, along with its sound enhancement technologies and robust protection features, make it a top choice for designers looking to optimize their audio subsystems without compromising on performance or space.
