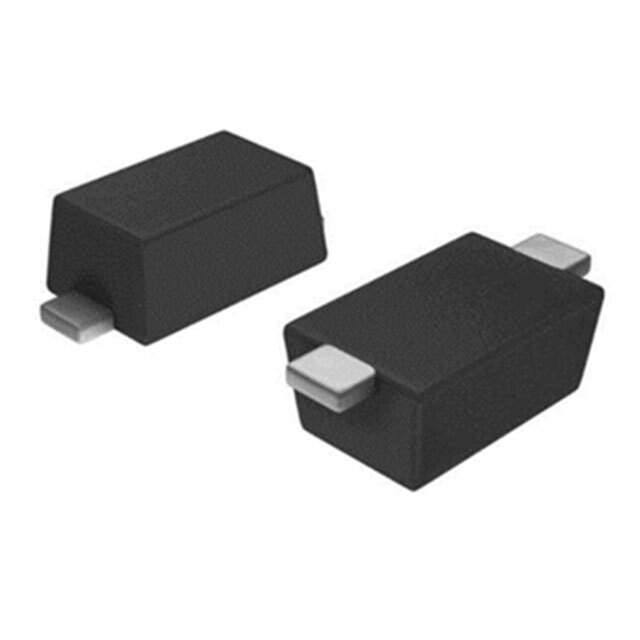

ESD5Z24 Real Image
Same model may have multiple batches, images only for reference.

ESD5Z24

Part No ESD5Z24
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 24VWM 35VC SOD523  /  Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Datasheet
ESD5Z24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr MDD
Series SOD-523
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 300W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 50pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-523
Supplier Device Package SOD-523
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3372-ESD5Z24TR,SOD5235Z24S05S
Standard Package 6,000
Win Source Part Number 1057912-ESD5Z24
Ultra Librarian 3D Model Ultra Librarian ESD5Z24 CAD Model

Description

The MDD TVS (Transient Voltage Suppressor) diode is a high-performance, low-power, Zener diode.

  • Reverse Standoff Voltage: 24V
  • Breakdown Voltage: 26V
  • Peak Pulse Power: 300W
  • Capacitance: 50pF @ 1MHz
  • Package: surface mount package
  • Ideal for: use in various applications such as power supplies, automotive electronics, and other electronic devices
