Same model may have multiple batches, images only for reference.

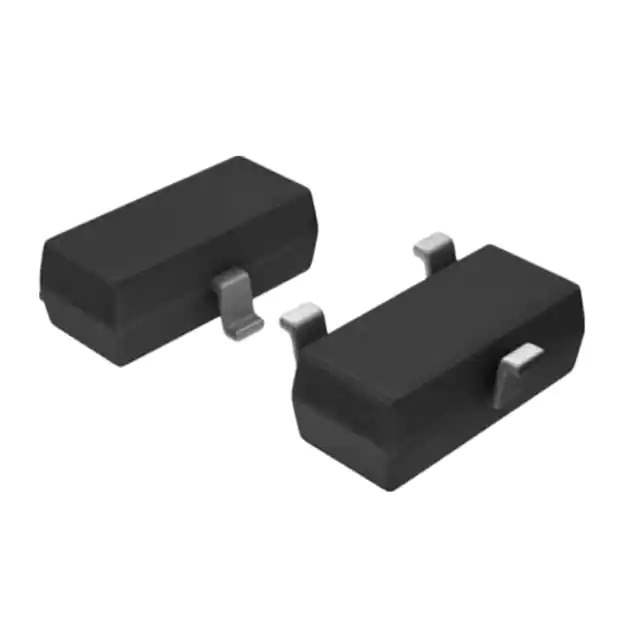

S8050 Real Image
Same model may have multiple batches, images only for reference.

S8050

Part No S8050
Manufacturer MDD
Catalog Transistors (BJT) - Single
Description TRANS NPN 25V 0.5A SOT23
Datasheet
S8050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr MDD
Series SOT-23
Package Tape & Reel
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 500 mA
Voltage - Collector Emitter Breakdown (Max) 25 V
Vce Saturation (Max) @ Ib, Ic 600mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 120 @ 50mA, 1V
Power - Max 300 mW
Frequency - Transition 150MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.21.0095
Win Source Part Number 662948-S8050
Package Tape & Reel (TR);Cut Tape (CT)
Current - Collector (Ic) (Max) 500mA
Voltage - Collector Emitter Breakdown (Max) 25V
Current - Collector Cutoff (Max) 100nA
Power - Max 300mW
Operating Temperature 150°C (TJ)
Grade -
Ultra Librarian 3D Model Ultra Librarian S8050 CAD Model

Description

The 662948-S8050 is a NPN bipolar transistor from MDD.

  • Applications: General-purpose switching and amplification
  • Maximum Power Dissipation: 300mW
  • Maximum Collector-Emitter Breakdown Voltage: 25V
  • Maximum Collector Current: 500mA
  • Package: Tape and reel
  • Standard Package: 6,000 pcs
  • Mounting: Surface mountable
