Same model may have multiple batches, images only for reference.

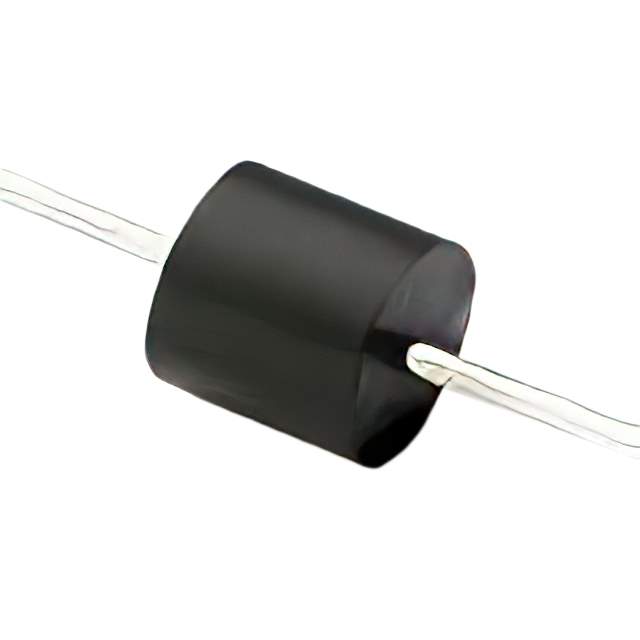

20KPA80CA Real Image
Same model may have multiple batches, images only for reference.

20KPA80CA

Part No 20KPA80CA
Manufacturer MDE Semiconductor, Inc.
Catalog TVS - Diodes
Description TVS DIODE UP 80VRWM 130VC  /  130V Clamp 155.4A Ipp Tvs Diode Through Hole P600
Datasheet
20KPA80CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr MDE Semiconductor Inc
Series 20KPA
Package Bulk
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 80V
Voltage - Breakdown (Min) 89.4V
Voltage - Clamping (Max) @ Ipp 130V
Current - Peak Pulse (10/1000µs) 155.4A
Power - Peak Pulse 20000W (20kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Other Names 3811-20KPA80CA
Standard Package 100
Win Source Part Number 1174606-20KPA80CA
Ultra Librarian 3D Model Ultra Librarian 20KPA80CA CAD Model

Description

The 1174606-20KPA80CA is a Zener type TVS diode designed for general-purpose applications. The MDE Semiconductor Inc 1174606-20KPA80CA is a TVS diode.

  • Diode Type: Zener
  • Application: General Purpose
  • Breakdown Voltage: 89.4V
  • Clamping Voltage: 130V @ Ipp
  • Peak Pulse Power: 20kW
  • Peak Pulse Current: 155.4A
  • Supply and Demand Status: Limited
