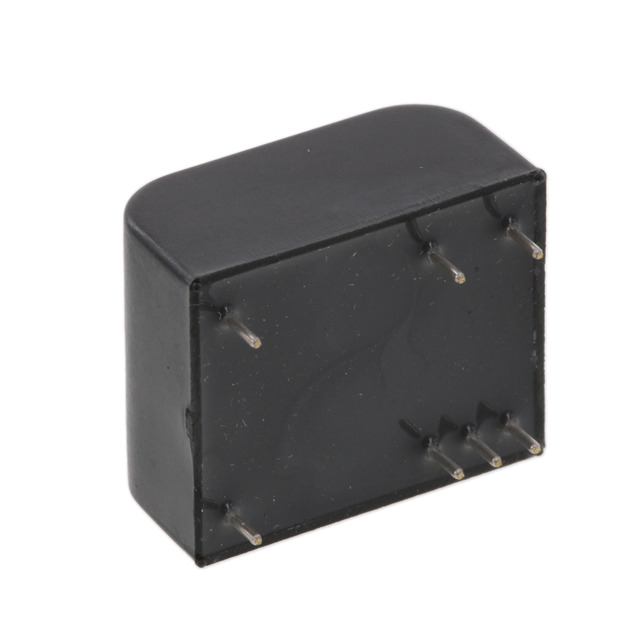

Same model may have multiple batches, images only for reference.
ADD-155A Mean Well Enterprises Co., Ltd. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ADD-155A

Part No ADD-155A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CNVRTR 13.8V 5V 13.3V 153W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Enclosed
Number of Outputs 3
Voltage - Input 88 ~ 264 VAC, 124 ~ 370 VDC
Voltage - Output 1 13.8V
Voltage - Output 2 5V
Voltage - Output 3 13.3V
Current - Output 1 9.5 A
Current - Output 2 3 A
Current - Output 3 500 mA
Power (Watts) 153W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 78%
Temperature Range - Operating -10°C ~ 60°C (With Derating)
Features Adjustable Output, PFC, Universal Input
Mounting Type Chassis Mount
Size / Dimension 7.83" L x 4.33" W x 1.97" H (199.0mm x 110.0mm x 50.0mm)
Approval Agency CB, CE, cURus, TUV
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1543574-ADD-155A
Ultra Librarian 3D Model Ultra Librarian ADD-155A CAD Model
