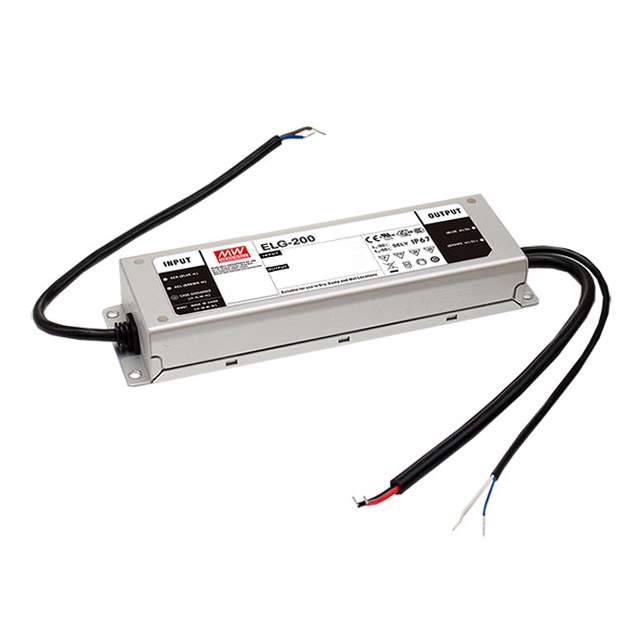

ELG-200-12A Real Image
Same model may have multiple batches, images only for reference.

ELG-200-12A

Part No ELG-200-12A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC/CV AC/DC 12V 16A / 16A 12V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
ELG-200-12A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series ELG-200 (200W)
Package Box
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 100VAC
Voltage - Input (Max) 305VAC
Voltage - Output 12V
Current - Output (Max) 16A
Power (Watts) 192 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Ratings IP65
Temperature Range - Operating -40°C ~ 90°C
Efficiency 90%
Termination Style Wire Leads
Dimension 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm)
Approval Agency CB, CCC, CE, cURus, ENEC, RCM
Mounting Type Chassis Mount
Base Product Number ELG-200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Other Names ELG-200-12A-ND,1866-1504
Standard Package 12
Win Source Part Number 1016575-ELG-200-12A
Ultra Librarian 3D Model Ultra Librarian ELG-200-12A CAD Model

Description

The ELG-200-12A is an external/internal power supply from MEAN WELL USA Inc.

  • Series: ELG-200
  • Type: Constant Current, Voltage
  • Termination Style: Wire Leads
  • Features: OCP, OTP, OVP, SCP
  • Mounting Style: Chassis Mount
  • Dimension: 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm)
