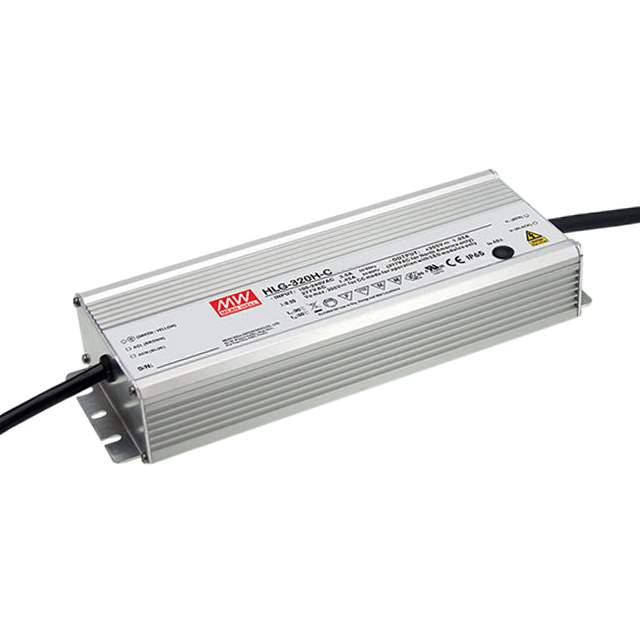

HLG-320H-48C Real Image
Same model may have multiple batches, images only for reference.

HLG-320H-48C

Part No HLG-320H-48C
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC/CV AC/DC 43-52V 6.7A / 6.7A 43 ~ 52V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
HLG-320H-48C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series HLG-320H (320W)
Package Box
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 305VAC
Voltage - Output 43 ~ 52V
Current - Output (Max) 6.7A
Power (Watts) 322 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 95%
Termination Style Wire Leads
Dimension 8.87" L x 3.54" W x 1.72" H (225.2mm x 90.0mm x 43.8mm)
Approval Agency CB, CCC, CE, cURus, PSE, RCM, TUV
Mounting Type Chassis Mount
Base Product Number HLG-320H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Other Names 1866-2492,HLG-320H-48C-ND
Standard Package 8
Win Source Part Number 996690-HLG-320H-48C
Ultra Librarian 3D Model Ultra Librarian HLG-320H-48C CAD Model

Description

The HLG-320H-48C is a high-quality constant current-voltage LED driver manufactured by MEAN WELL USA Inc. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Maximum Power Output: 322W
  • Maximum Output Voltage: 52V
  • Protection: Over-Current, Over-Temperature, Over-Voltage, Short-Circuit
  • Efficiency: 95%
  • Operating Temperature: -40°C to 90°C
