Same model may have multiple batches, images only for reference.

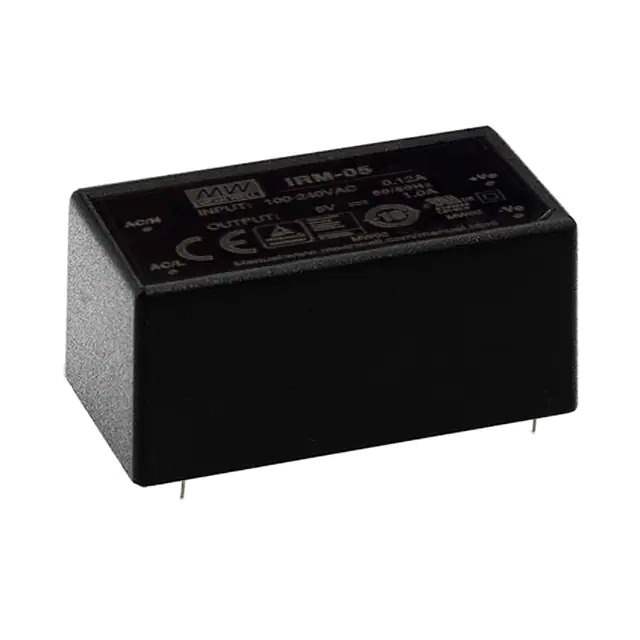

IRM-05-5 Real Image
Same model may have multiple batches, images only for reference.

IRM-05-5

Part No IRM-05-5
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 5V 5W / Enclosed AC DC Converters 1 Output 5V 1A 85 ~ 305 VAC, 120 ~ 430 VDC Input
Datasheet
IRM-05-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series IRM-05 (5W)
Package Box
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 120 ~ 430 VDC
Voltage - Output 1 5V
Current - Output (Max) 1A
Power (Watts) 5 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Efficiency 71%
Mounting Type Through Hole
Package / Case 4-DIP Module
Size / Dimension 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm)
Approval Agency CB, CE, cURus, EAC, TUV
Line Regulation ±0.3%
Load Regulation ±0.5%
Base Product Number IRM-05
Standard Package 270 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 847556-IRM-05-5
Ultra Librarian 3D Model Ultra Librarian IRM-05-5 CAD Model

Description

The IRM-05 (5W) is an enclosed AC-DC converter designed for board mount applications from Mean Well Enterprises Co., Ltd.

  • Features: Universal input
  • Package: Compact Box
  • Output Voltage: 5V
  • Output Current: 1A (max)
  • Input Voltage: 85 ~ 305 VAC, 120 ~ 430 VDC
  • Power: 5W
  • Efficiency: 71%
  • Line Regulation: ±0.3%
  • Load Regulation: ±0.5%
  • Application: ITE (Commercial)
  • Mounting: Through Hole
  • Operating Temperature: -30°C to 70°C
  • Approvals: CB, CE, cURus, EAC, TUV
