Same model may have multiple batches, images only for reference.

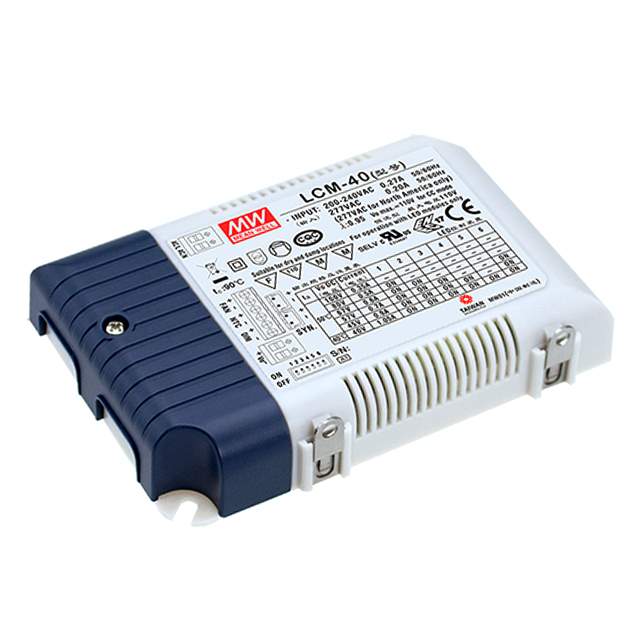

LCM-40 Real Image
Same model may have multiple batches, images only for reference.

LCM-40

Part No LCM-40
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC AC/DC 2-100V 1.05A  /  1.05A 2 ~ 100V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
LCM-40 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series LCM-40 (40W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 180VAC
Voltage - Input (Max) 295VAC
Voltage - Output 2 ~ 100V
Current - Output (Max) 1.05A
Power (Watts) 42 W
Voltage - Isolation 3.75 kV
Dimming Analog, PWM
Features OTP, OVP, SCP
Temperature Range - Operating -30°C ~ 60°C
Efficiency 91%
Termination Style Terminal Block
Dimension 4.86" L x 3.21" W x 0.91" H (123.5mm x 81.5mm x 23.0mm)
Approval Agency CB, CCC, CE, cURus, ENEC
Mounting Type Chassis Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 1866-3075,LCM-40-ND
Standard Package 54
Win Source Part Number 1052537-LCM-40
Ultra Librarian 3D Model Ultra Librarian LCM-40 CAD Model

Description

The LCM-40 (40W) LED driver is a constant current type power supply that features OTP, OVP, and SCP protection.

  • Voltage Output Range: 2-100V
  • Maximum Output Current: 1.05A
  • Termination Style: Terminal Block
  • Package: Box
  • Voltage Isolation: 3.75kV
  • Topology: AC-DC Converter
  • Dimming: Analog and PWM
  • Efficiency: 91%
  • Operating Temperature Range: -30°C to 60°C
  • Dimension: 4.86" L x 3.21" W x 0.91" H (123.5mm x 81.5mm x 23.0mm)
