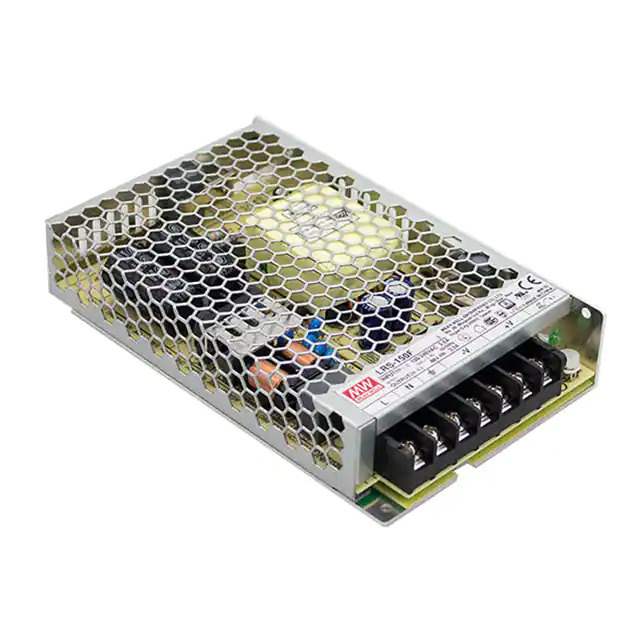

LRS-150F-24 Real Image
Same model may have multiple batches, images only for reference.

LRS-150F-24

Part No LRS-150F-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 156W / Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
LRS-150F-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series LRS-150F (150W)
Package Box
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 24V
Current - Output 1 6.5 A
Power (Watts) 156W
Applications Household Appliances, ITE (Commercial)
Voltage - Isolation 4 kV
Efficiency 89%
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm)
Approval Agency CB, CCC, CE, cURus, RCM, TUV
Minimum Load Required No
Base Product Number LRS-150
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Win Source Part Number 847136-LRS-150F-24
Ultra Librarian 3D Model Ultra Librarian LRS-150F-24 CAD Model

Description

The LRS-150F-24 is a 150W enclosed AC-DC converter from Mean Well Enterprises Co., Ltd.

  • Series: LRS-150F
  • Features: Adjustable Output, Universal Input
  • Application: Household Appliances, ITE (Commercial)
  • Size / Dimension: 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm)
  • Number of Outputs: 1
  • Voltage - Output: 24V
  • Current - Output (Max): 6.5A
  • Voltage - Input: 85V ~ 264V AC, 120V ~ 370V DC
  • Efficiency: 89%
  • Minimum Load Required: No
  • Mounting Type: Chassis Mount
  • Operating Temperature: -30°C ~ 70°C (With Derating)
  • Approvals: CB, CCC, CE, cURus, RCM, TUV
