Same model may have multiple batches, images only for reference.

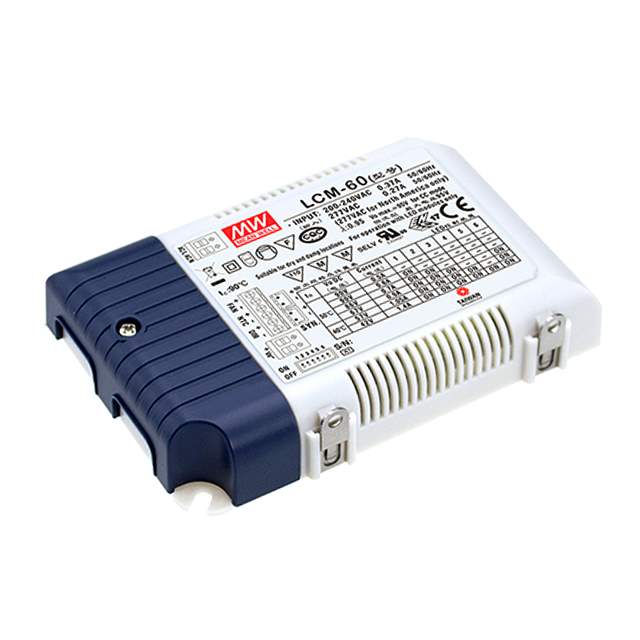

LCM-60 Real Image
Same model may have multiple batches, images only for reference.

LCM-60

Part No LCM-60
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER CC AC/DC 2-90V 1.4A / 1.4A 2 ~ 90V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
LCM-60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Manufacturer MEAN WELL USA Inc.
Packaging Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 180VAC
Voltage - Input (Max) 295VAC
Voltage - Output 2 ~ 90V
Current - Output (Max) 1.4A
Power (Watts) 60 W
Voltage - Isolation 3.75 kV
Dimming Analog, PWM
Features OTP, OVP, SCP
Temperature Range - Operating -30°C ~ 90°C
Efficiency 92%
Termination Style Terminal Block
Size / Dimension 4.86" L x 3.21" W x 0.91" H (123.5mm x 81.5mm x 23.0mm)
Approval Agency CB, CCC, CE, cURus, ENEC
Mounting Chassis Mount
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Part Number 1866-3079,LCM-60-ND
Standard Package 54
Win Source Part Number 1335167-LCM-60
Ultra Librarian 3D Model Ultra Librarian LCM-60 CAD Model

Description

The LCM-60 is a constant current LED driver from MEAN WELL USA Inc.

  • Power Output: 60W
  • Voltage Output: 2-90V
  • Protection: OTP, OVP, SCP
  • Application: LED Lighting Applications
  • Efficiency: 92 percent
  • Mounting: Chassis Mount
  • ROHS3 Compliant: Yes
  • Approvals: CB, CCC, CE, cURus, ENEC
