Same model may have multiple batches, images only for reference.

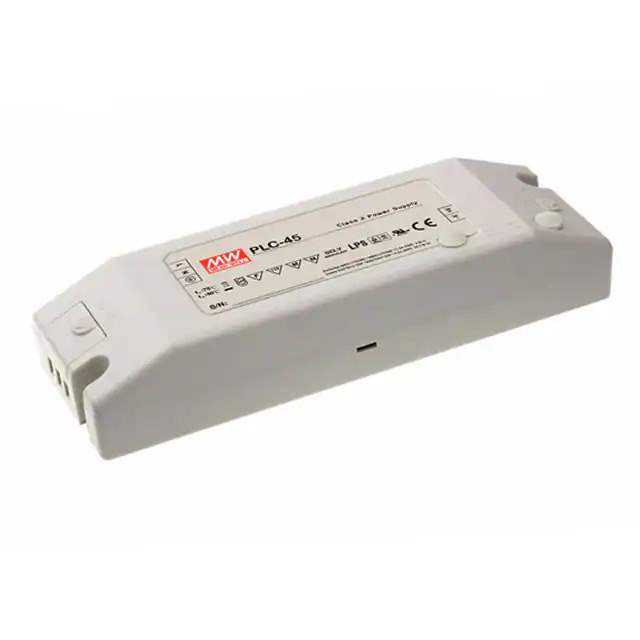

PLC-45-48 Real Image
Same model may have multiple batches, images only for reference.

PLC-45-48

Part No PLC-45-48
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC AC/DC 36-48V 950MA
Datasheet
PLC-45-48 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - LED Drivers
Mfr Mean Well Enterprises Co., Ltd.
Series PLC-45 (45W)
Package Box
Product Status Not For New Designs
Programmable Not Verified
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 264VAC
Voltage - Output 36 ~ 48V
Current - Output (Max) 950mA
Power (Watts) 46 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Temperature Range - Operating -30°C ~ 50°C
Efficiency 87.5%
Termination Style Terminal Block
Size / Dimension 7.15" L x 2.44" W x 1.38" H (181.5mm x 62.0mm x 35.0mm)
Approval Agency CB, CCC, CE, ENEC, PSE, TUV, UR
Mounting Type Chassis Mount
Base Product Number PLC-45
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 655978-PLC-45-48
Ultra Librarian 3D Model Ultra Librarian PLC-45-48 CAD Model

Description

The 655978-PLC-45-48 is a 45W constant current LED driver designed for industrial applications.

  • Protections: Overcurrent Protection (OCP), Overtemperature Protection (OTP), Overvoltage Protection (OVP), and Short Circuit Protection (SCP)
  • Size: 7.15" L x 2.44" W x 1.38" H (181.5mm x 62.0mm x 35.0mm)
  • Output: Single
  • Voltage Range: 36V to 48V
  • Maximum Output Current: 950mA
  • Isolation Voltage: 3.75 kV
  • Input Voltage Range: 90VAC to 264VAC
  • Efficiency: 87.5%
  • Manufacturer: Mean Well Enterprises Co., Ltd.
