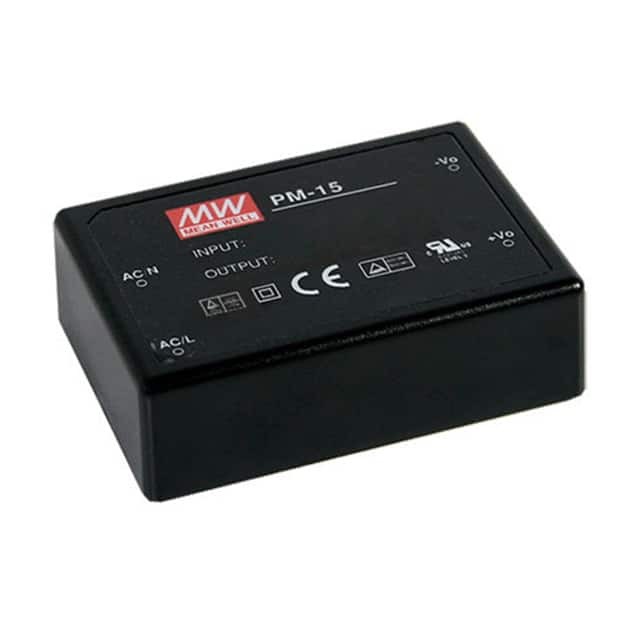

PM-15-15
Same model may have multiple batches, images only for reference.

PM-15-15

Part No PM-15-15
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 15V 15W
Datasheet
PM-15-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series PM-15 (15W)
Package Tray
Product Status Obsolete
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 15V
Current - Output (Max) 1A
Power (Watts) 15 W
Applications Medical
Features Universal Input
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Efficiency 79%
Mounting Type Through Hole
Package / Case 4-DIP Module
Size / Dimension 2.95" L x 2.09" W x 0.89" H (75.0mm x 53.0mm x 22.7mm)
Approval Agency CB, CE, cURus, TUV
Line Regulation ±0.5%
Load Regulation ±1%
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 847224-PM-15-15
Ultra Librarian 3D Model Ultra Librarian PM-15-15 CAD Model

Description

The PM-15 (15W) is an enclosed power supply with universal input.

  • Product Name: PM-15 (15W)
  • Application: Power Supplies - Board Mount - AC DC Converters
  • Package Size: 2.95" L x 2.09" W x 0.89" H (75.0mm x 53.0mm x 22.7mm)
  • Voltage Input Range: 85 ~ 264 VAC, 120 ~ 370 VDC
  • Output Voltage: 15V
  • Maximum Output Current: 1A
  • Efficiency: 79%
  • Operating Temperature: -20°C ~ 70°C (with derating)
  • Status: Obsolete
  • Approvals: CB, CE, cURus, and TUV
