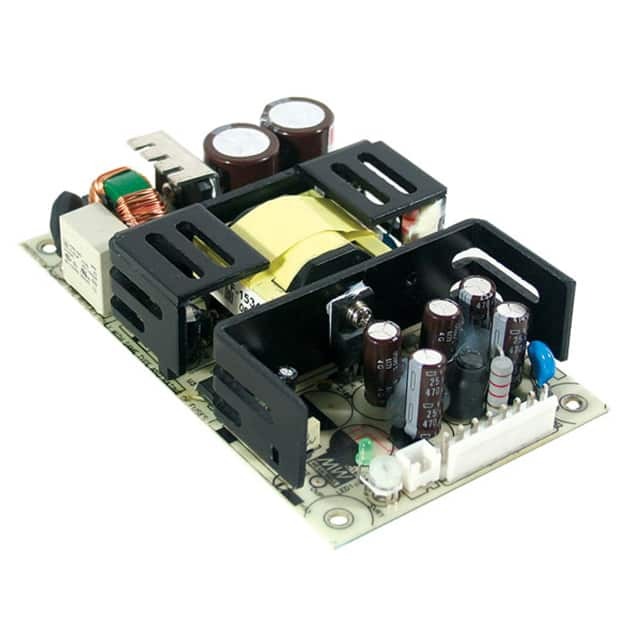

RPD-75B
Same model may have multiple batches, images only for reference.

RPD-75B

Part No RPD-75B
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 5V 24V 73W / Open Frame AC DC Converters 2 Output 5V 24V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Datasheet
RPD-75B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series RPD-75 (75W)
Package Box
Product Status Active
Type Open Frame
Number of Outputs 2
Voltage - Input 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 5V
Voltage - Output 2 24V
Current - Output 1 5 A
Current - Output 2 2 A
Power (Watts) 73W
Applications Medical
Voltage - Isolation 4 kV
Efficiency 79%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 31.0mm)
Approval Agency CB, CE, cURus, TUV
Minimum Load Required Yes
Base Product Number RPD-75
Standard Package 63 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Win Source Part Number 847024-RPD-75B
Ultra Librarian 3D Model Ultra Librarian RPD-75B CAD Model

Description

The RPD-75 (75W) is an open frame power supply with adjustable output and universal input.

  • Package Size: 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 31.0mm)
  • Voltage Input: 90 ~ 264 VAC, 127 ~ 370 VDC
  • Voltage Isolation: 4 kV
  • Outputs: 2
  • Output Voltages: 5V, 24V
  • Efficiency: 79%
  • Minimum Load: Required
  • Mounting Type: Chassis Mount
  • Operating Temperature: -20°C ~ 70°C (with derating)
  • Approvals: CB, CE, cURus, TUV
