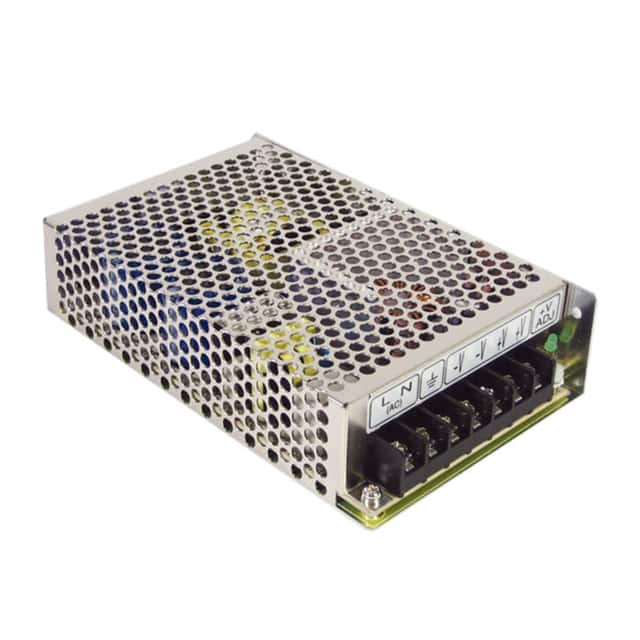

Same model may have multiple batches, images only for reference.
RQ-85C

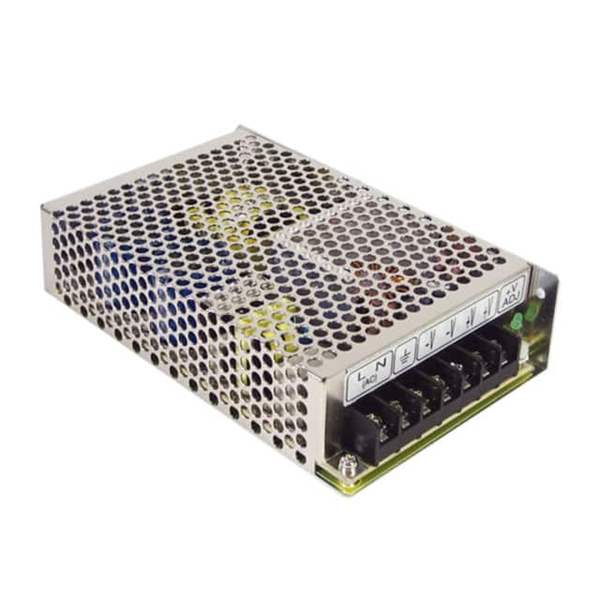

Same model may have multiple batches, images only for reference.

RQ-85C

Part No RQ-85C
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CNVRTR 5V 15V -5V -15V 83W / Enclosed AC DC Converters 4 Output 5V 15V -5V -15V 88 ~ 264 VAC, 125 ~ 373 VDC Input
Datasheet
RQ-85C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series RQ-85 (85W)
Package Box
Product Status Active
Type Enclosed
Number of Outputs 4
Voltage - Input 88 ~ 264 VAC, 125 ~ 373 VDC
Voltage - Output 1 5V
Voltage - Output 2 15V
Voltage - Output 3 -5V
Voltage - Output 4 -15V
Current - Output 1 7 A
Current - Output 2 2.5 A
Current - Output 3 500 mA
Current - Output 4 500 mA
Power (Watts) 83W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 77%
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm)
Approval Agency CB, CE, cURus, TUV
Minimum Load Required Yes
Base Product Number RQ-85
Standard Package 24 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Win Source Part Number 846955-RQ-85C
Ultra Librarian 3D Model Ultra Librarian RQ-85C CAD Model

Description

The RQ-85C is an 85W enclosed power supply from Mean Well Enterprises Co., Ltd.

  • Series: RQ-85 (85W)
  • Application: External/Internal (Off-Board) AC-DC Converters
  • Features: Adjustable Output, Universal Input
  • Package: Box
  • Size: 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm)
  • Input Voltage: 88-264 VAC, 125-373 VDC
  • Outputs: Four (5V, 15V, -5V, -15V)
  • Efficiency: 77%
  • Application: Commercial ITE
