Same model may have multiple batches, images only for reference.

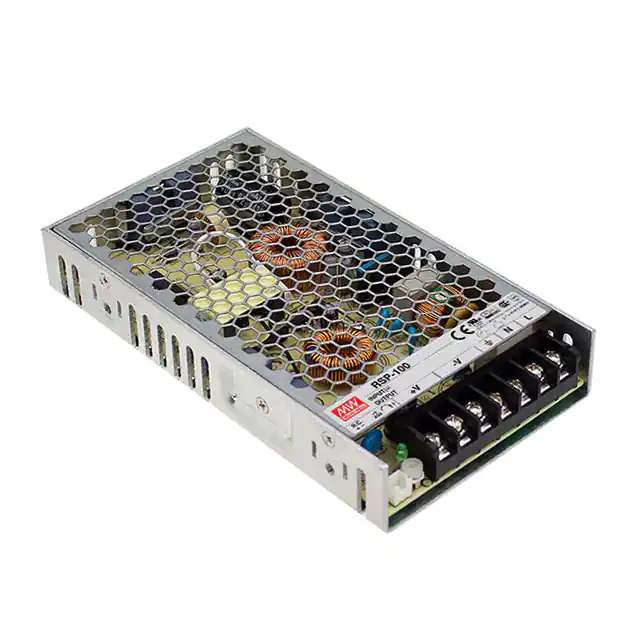

RSP-100-24 Real Image
Same model may have multiple batches, images only for reference.

RSP-100-24

Part No RSP-100-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 101W / Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
RSP-100-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series RSP-100 (100W)
Package Box
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 24V
Current - Output 1 4.2 A
Power (Watts) 101W
Applications ITE (Commercial)
Voltage - Isolation 4 kV
Efficiency 87%
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type Chassis Mount
Size / Dimension 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm)
Approval Agency CB, CCC, CE, cURus, TUV
Minimum Load Required No
Base Product Number RSP-100
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Win Source Part Number 846963-RSP-100-24
Ultra Librarian 3D Model Ultra Librarian RSP-100-24 CAD Model

Description

The 846963-RSP-100-24 is a 100W enclosed AC/DC converter from Mean Well Enterprises Co., Ltd.

  • Series: RSP-100
  • Application: External/Internal Power Supplies (Commercial)
  • Features: Adjustable Output, Power Factor Correction (PFC), Remote On/Off, Universal Input
  • Input Voltage: 85 to 264 VAC or 120 to 370 VDC
  • Output: Single (24V)
  • Maximum Output Current: 4.2A
  • Power: 101W
  • Efficiency: 87%
  • Package Size: 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm)
  • Mounting: Chassis Mount
  • Operating Temperature: -30°C to 70°C (with derating)
  • Approvals: CB, CCC, CE, cURus, TUV
