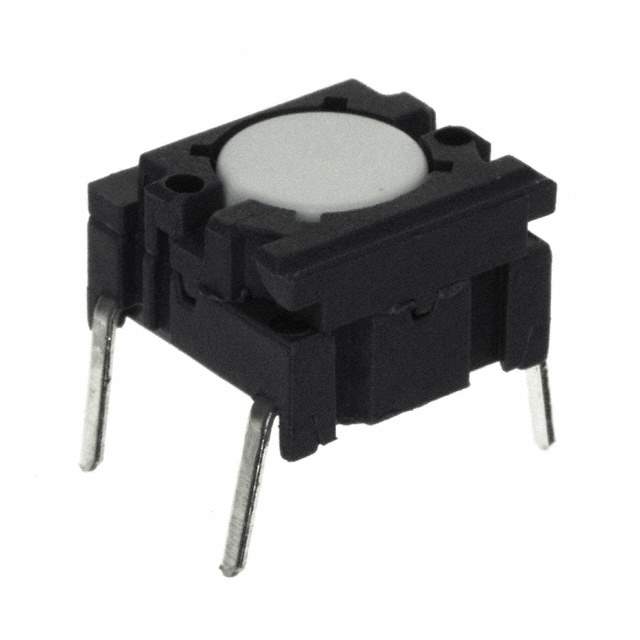

Same model may have multiple batches, images only for reference.

3ATL6

Name: 3ATL6
Brand: MEC Switches
SKU: 1380797
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	3ATL6
Manufacturer	MEC Switches
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet	3ATL6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	MEC Switches
Series	Multimec® 3
Package	Tube
Product Status	Obsolete
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Plunger for Cap
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	6.40mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	10.10mm x 10.10mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	300gf
Ingress Protection	IP67 - Dust Tight, Waterproof
Features	Sealed - Flux Protection
Temperature Range - Operating	-40°C ~ 115°C
Actuator Material	Polybutylene Terephthalate (PBT)
Switch Travel	1.00mm
Mechanical Life	10,000,000 Cycles
Base Product Number	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Standard Package	100 pcs
Win Source Part Number	1380797-3ATL6
Ultra Librarian 3D Model	Ultra Librarian 3ATL6 CAD Model

Alternative Products

Description

The Multimec 3 series tactile switch is a high-quality sealed switch designed for use in various applications.

Ingress Protection: IP67
Circuit: SPST-NO
Switch Function: off-mom
Actuator Type: plunger for cap
Switch Travel: 1.00mm
Contact Rating: 0.05A @ 24VDC
Orientation: top actuated
Outline: 10.10mm x 10.10mm
Illumination: non-illuminated
Operating Force: 300gf
Mounting Type: through-hole
Temperature Range: -40°C to 115°C
Standard Package: 100 pcs
