Same model may have multiple batches, images only for reference.

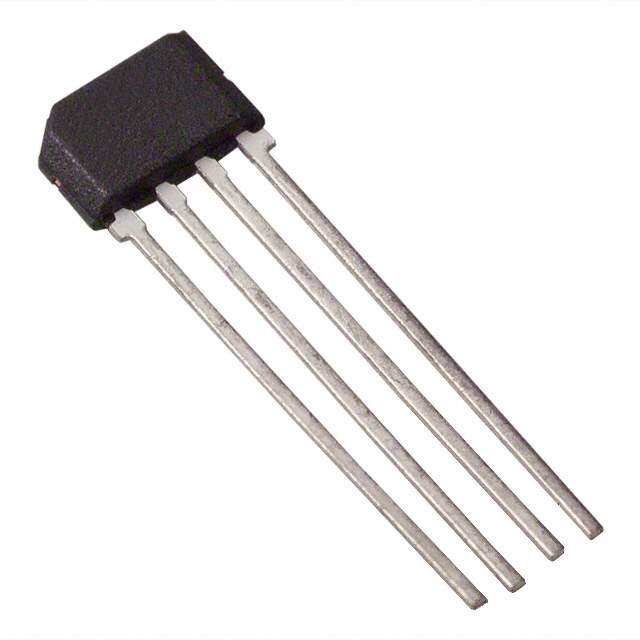

MLX91209LVA-CAA-001-SP Real Image
Same model may have multiple batches, images only for reference.

MLX91209LVA-CAA-001-SP

Part No MLX91209LVA-CAA-001-SP
Manufacturer Melexis Technologies NV
Catalog Current Transducers
Description HIGH SPEED PROGRAMMABLE CURRENT / Current Sensor 1 Channel Hall Effect, Open Loop Bidirectional 4-SSIP Module
Datasheet
MLX91209LVA-CAA-001-SP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Melexis Technologies NV
Package Bulk
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Number of Channels 1
Output Ratiometric, Voltage (Selectable)
Sensitivity 50mV/A
Frequency DC ~ 200kHz
Linearity ±0.4%
Voltage - Supply 4.5V ~ 5.5V
Response Time 6µs
Current - Supply (Max) 14mA
Temperature Range - Operating -40°C ~ 125°C (TA)
Polarization Bidirectional
Mounting Type Through Hole
Package / Case 4-SSIP Module
Supplier Device Package 4-SIP
Base Product Number MLX91209
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A001A2A
HTSUS 8542.39.0001
Standard Package 100
Win Source Part Number 986323-MLX91209LVA-CAA-001-SP
Ultra Librarian 3D Model Ultra Librarian MLX91209LVA-CAA-001-SP CAD Model

Description

The MLX91209LVA-CAA-001-SP is a current sensor with bidirectional polarization and a sensitivity of 50mV/A.

  • Polarization: Bidirectional
  • Sensitivity: 50mV/A
  • Output Type: Ratiometric and Selectable Voltage
  • Response Time: 6µs
  • Sensor Type: Hall Effect, open loop
  • Measurement: AC/DC Current
  • Current Supply (max): 14mA
  • Number of Channels: 1
  • Linearity: ±0.4%
  • Voltage Supply Range: 4.5V to 5.5V
  • Operating Temperature Range: -40°C to 125°C
  • Package: 4-SSIP module
  • Mounting Type: Through-Hole
  • Standard Package: 100 units
