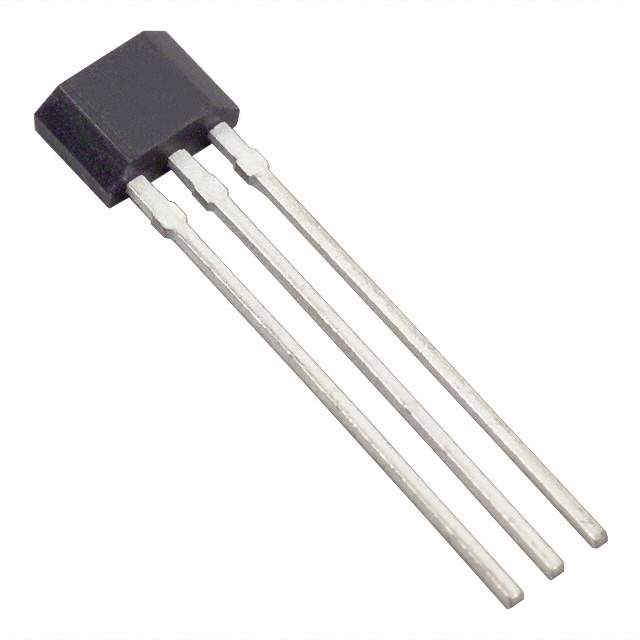

MLX92241LUA-BAA-111-CA Real Image1 MLX92241LUA-BAA-111-CA Real Image2
Same model may have multiple batches, images only for reference.
MLX92241LUA-BAA-111-CA Real Image1 MLX92241LUA-BAA-111-CA Real Image2
MLX92241LUA-BAA-111-CA Real Image1 MLX92241LUA-BAA-111-CA Real Image2
Same model may have multiple batches, images only for reference.

MLX92241LUA-BAA-111-CA

Part No MLX92241LUA-BAA-111-CA
Manufacturer Melexis Technologies NV
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH LATCH TO92UA / Digital Switch Unipolar Switch Current Source Hall Effect TO-92-3
Datasheet
MLX92241LUA-BAA-111-CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors>Switches (Solid State)
Mfr Melexis Technologies NV
Series Automotive, AEC-Q100
Package Cut Tape (CT)Tape & Box (TB)
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 5.1mT Trip, 1.5mT Release
Test Condition 25°C
Voltage - Supply 2.7V ~ 24V
Current - Supply (Max) 17mA
Current - Output (Max) -
Output Type Current Source
Features Temperature Compensated
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Through Hole
Supplier Device Package TO-92-3
Package / Case TO-226-3, TO-92-3 Short Body
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
Standard Package 7,500 pcs
Win Source Part Number 1382902-MLX92241LUA-BAA-111-CA
Ultra Librarian 3D Model Ultra Librarian MLX92241LUA-BAA-111-CA CAD Model

Description

The 1382902-MLX92241LUA-BAA-111-CA is a magnetic sensor switch from the automotive AEC-Q100 series by Melexis Technologies NV.

  • Series: Automotive AEC-Q100
  • Features: Temperature Compensation
  • Test Condition: 25°C
  • Polarization: South Pole
  • Sensing Range: 5.1mT Trip, 1.5mT Release
  • Voltage Supply: 2.7V to 24V
  • Supply Current: 17mA (Max)
  • Package: TO-92-3 Short Body
  • Supplier Device Package: TO-92-3
  • Moisture Sensitivity Level: 1
  • Standard Package: 7,500 pieces
