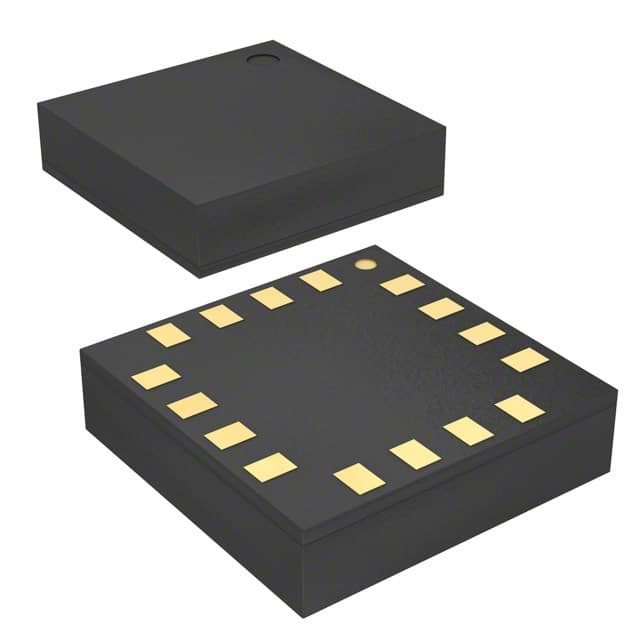

MMC5883MA

Part No MMC5883MA
Manufacturer Memsic Inc.
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR MR I2C 16LGA
Datasheet
MMC5883MA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Linear, Compass (ICs)
Mfr Memsic Inc.
Package Tape & Reel
Product Status Obsolete
Technology Magnetoresistive
Axis X, Y, Z
Output Type I2C
Sensing Range ±0.8mT
Voltage - Supply 2.16V ~ 3.6V
Current - Supply (Max) 120µA
Resolution 16 b
Bandwidth 600Hz
Temperature Range - Operating -40°C ~ 85°C
Features Temperature Compensated
Supplier Device Package 16-LGA (3x3)
Mounting Type Surface Mount
Package / Case 16-VFLGA
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN 7A994
HTSUS 8542.39.0001
Win Source Part Number 846573-MMC5883MA
Ultra Librarian 3D Model Ultra Librarian MMC5883MA CAD Model

Description

The MMC5883MA is a magnetoresistive sensor that provides accurate and reliable linear and compass sensing. Bold the product name (e.g., MMC5883MA → MMC5883MA) and manufacturer (e.g., MultiDimension Technology Co., Ltd → MultiDimension Technology Co., Ltd).

  • Feature: Temperature-Compensated
  • Operating Temperature Range: -40°C to 85°C
  • Supply Voltage: 2.16V to 3.6V
  • Current Consumption: 120μA
  • Sensing Range: ±0.8mT
  • Resolution: 16 bits
  • Output Type: I2C
  • Package: 16-VFLGA
  • Mounting Type: Surface Mount
  • Bandwidth: 600Hz
  • Applications: robotics, navigation systems, and industrial automation
