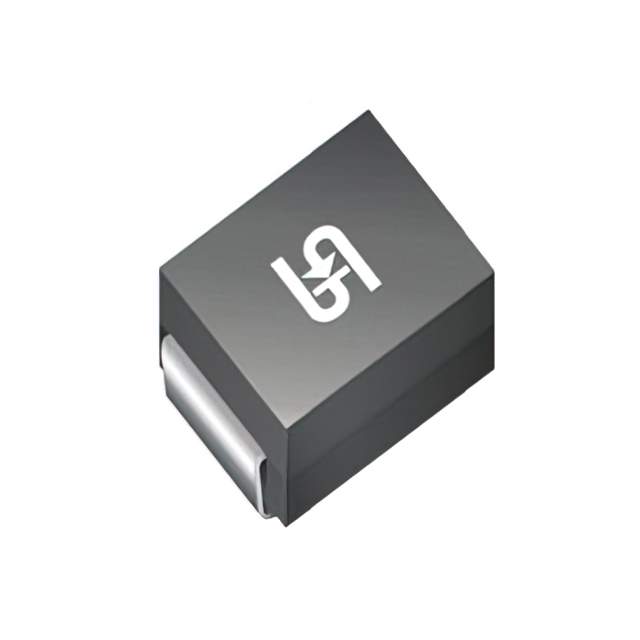

SMCJ7.0 Real Image
Same model may have multiple batches, images only for reference.

SMCJ7.0

Part No SMCJ7.0
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
SMCJ7.0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMCJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 7V
Voltage - Breakdown (Min) 7.78V
Voltage - Clamping (Max) @ Ipp 13.3V
Current - Peak Pulse (10/1000µs) 112.78A
Power - Peak Pulse 1500W (1.5kW)
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AB (SMC)
Other Names 2997-SMCJ7.0TR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299911-SMCJ7.0
Ultra Librarian 3D Model Ultra Librarian SMCJ7.0 CAD Model

Description

The SMCJ series Zener diode is designed for circuit protection in general purpose applications.

  • Package Type: Tape & Reel (TR)
  • Mounting: Surface Mount Device (SMD)
  • Channel: Unidirectional
  • Reverse Standoff Voltage: 7V
  • Breakdown Voltage: 7.78V
  • Clamping Voltage: 13.3V @ peak pulse power of 1500W
  • Peak Pulse Current: 112.78A @ 10/1000µs
  • Temperature Range: -55°C to 150°C
  • Package/Case Type: DO-214AB (SMC)
  • Standard Package: 20 diodes
  • Capacitance @ Frequency: Not provided
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.10.0080
  • Manufacturer: Meritek
