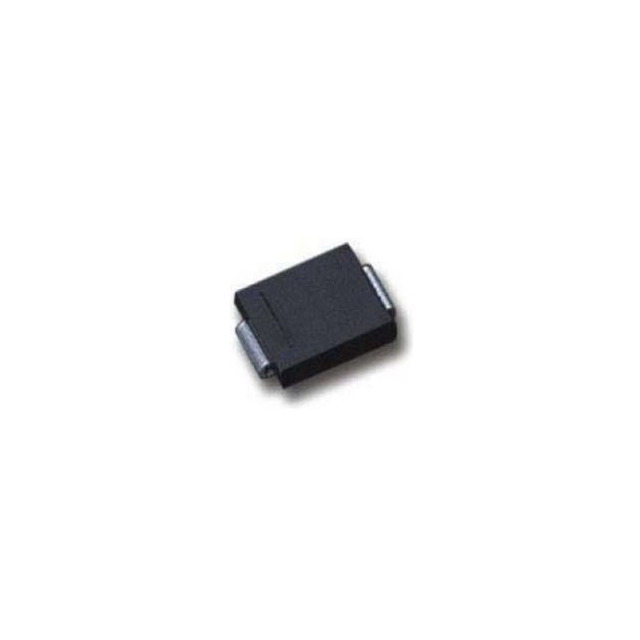

SMDJ20 Real Image
Same model may have multiple batches, images only for reference.

SMDJ20

Part No SMDJ20
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
SMDJ20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMDJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 20V
Voltage - Breakdown (Min) 22.2V
Voltage - Clamping (Max) @ Ipp 35.8V
Current - Peak Pulse (10/1000µs) 83.8A
Power - Peak Pulse 3000W (3kW)
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AB (SMC)
Other Names 2997-SMDJ20TR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299889-SMDJ20
Ultra Librarian 3D Model Ultra Librarian SMDJ20 CAD Model

Description

The SMDJ20 is a TVS diode manufactured by Meritek.

  • Type: Unidirectional zener type diode
  • Reverse Standoff Voltage: 20V
  • Breakdown Voltage: 22.2V
  • Clamping Voltage: 35.8V @ Ipp
  • Peak Pulse Power: 3000W
  • Package: Surface mount package of DO-214AB type
  • Application: Circuit protection applications
