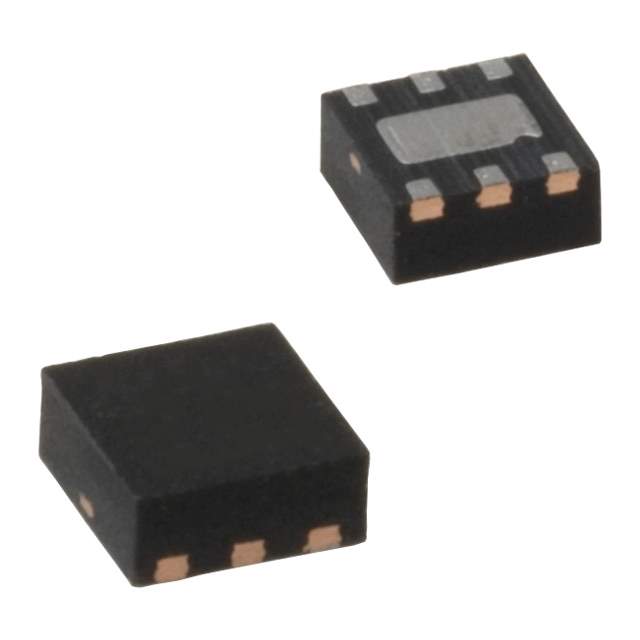

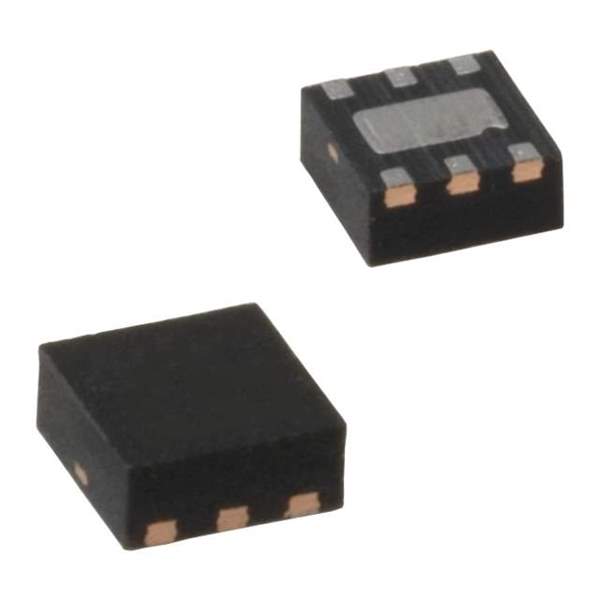

The MIC5320-MGYMT is a high-efficiency, dual, 200mA Low Dropout (LDO) regulator from Micrel (now Microchip Technology). It is designed for portable applications where space is limited and efficiency is critical. This LDO offers independent enable control for each output, allowing for flexible power management.

Applications

• Mobile Phones: Powers various sub-systems like cameras, audio codecs, and display drivers.
• Portable Media Players: Regulates voltage for audio and video processing circuits.
• Wireless Handsets: Supplies power to RF transceivers and baseband processors.
• Bluetooth Headsets: Provides efficient power to audio and control circuits.
• Digital Cameras: Regulates voltage for image sensors and processing units.

Features

• Dual LDO Regulators: Provides two independent LDO regulators in a single package.
• 200mA Output Current per LDO: Delivers up to 200mA of output current from each LDO.
• High Efficiency: Minimizes power loss, extending battery life.
• Low Dropout Voltage: Operates with a minimal voltage difference between input and output.
• Independent Enable Control: Allows for individual control of each LDO output.
• Overcurrent Protection: Protects the regulators and connected devices from damage.
• Thermal Shutdown Protection: Shuts down the regulators if the junction temperature exceeds safe limits.
• Small Package: Available in a tiny package for space-constrained applications.

Benefits

• Reduced Board Space: Dual regulators in a single package saves valuable board space.
• Extended Battery Life: High efficiency minimizes power consumption.
• Flexible Power Management: Independent enable control allows for optimized power sequencing.
• Reliable Operation: Protection features safeguard the regulators and load.
• Simplified Design: Requires minimal external components.

Additional Details

The MIC5320-MGYMT typically operates with an input voltage range of 2.5V to 5.5V. The "MGYMT" likely refers to a specific package type (e.g., TMLF). The output voltage can be fixed (e.g., 1.8V, 2.8V, 3.3V) or adjustable, depending on the specific variant. The datasheet provides detailed electrical characteristics, thermal considerations, package dimensions, and example application circuits. The independent enable pins allow for controlled startup and shutdown sequences, optimizing power consumption in portable devices.
