Same model may have multiple batches, images only for reference.

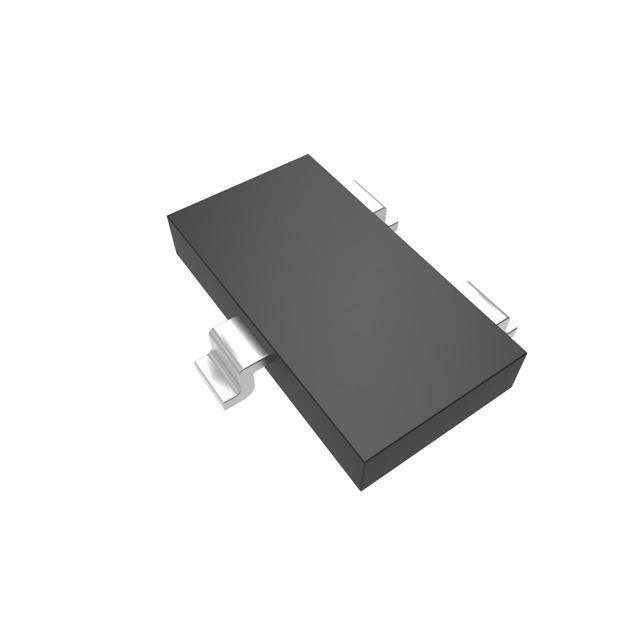

BAS40WT-TP Real Image
Same model may have multiple batches, images only for reference.

BAS40WT-TP

Part No BAS40WT-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 200MA SOT323
Datasheet
BAS40WT-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 40mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 1μA @ 30V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SOT-323
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1022095-BAS40WT-TP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BAS40WT-TP CAD Model

Description

The Micro Commercial Co Schottky Diode is a high-quality electronic component designed to provide reliable and accurate voltage control in a variety of applications.

  • Voltage Rating: 40V
  • Current Rating: 200mA
  • Package: SOT-323
  • Supply: reel of 3000 units
  • REACH: unaffected
  • ECCN: EAR99
