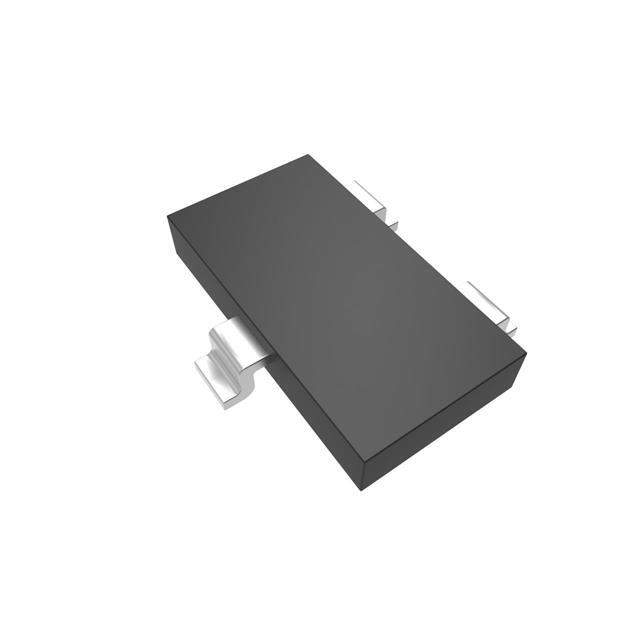

BAS70WT-TP Real Image
Same model may have multiple batches, images only for reference.

BAS70WT-TP

Part No BAS70WT-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 70V 70MA SOT323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Micro Commercial Co
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 70V
Current - Average Rectified (Io) 70mA (DC)
Voltage - Forward (Vf) (Maximum) at If 1V at 15mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage at Vr 100nA at 50V
Mounting Style SMD
Manufacturer Package SC-70, SOT-323
Supplier Device Package SOT-323
Operating Temperature - Junction -55°C ~ 125°C
Part Number Series BAS70WT
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803290-BAS70WT-TP
Ultra Librarian 3D Model Ultra Librarian BAS70WT-TP CAD Model

Description

The Micro Commercial Co BAS70WT-TP is a Schottky Diode that comes in SOT-323 package.

  • Forward Voltage: 1V @ 15mA
  • Reverse Voltage: 70V
  • Average Rectified Current: 70mA
  • Reverse Recovery Time: 5ns
  • Temperature Range: -55°C to 125°C
  • MSL Level: 1 (unlimited)
