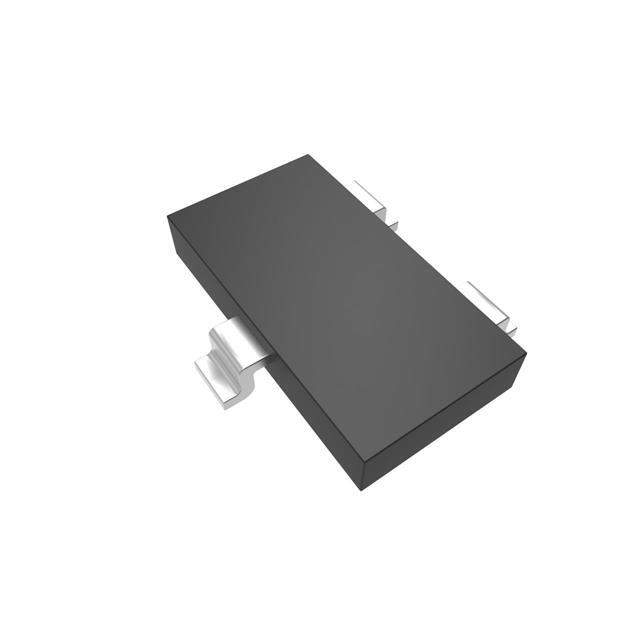

BAT54AWT-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54AWT-TP

Part No BAT54AWT-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT323
Datasheet
BAT54AWT-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Anode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction -55°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-323
Win Source Part Number 1022165-BAT54AWT-TP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BAT54AWT-TP CAD Model

Description

The Micro Commercial Co BAT54AWT-TP is a surface-mount Schottky diode designed for use in discrete semiconductor products.

  • Maximum Reverse Voltage: 30V
  • Forward Voltage: 1V @ 100mA
  • Reverse Recovery Time: 5ns
  • Reverse Leakage Current: 2μA @ 25V
  • Average Rectified Current: 200mA (DC) per diode
  • Package: SOT-323
  • Operating Temperature: -55°C to 125°C
