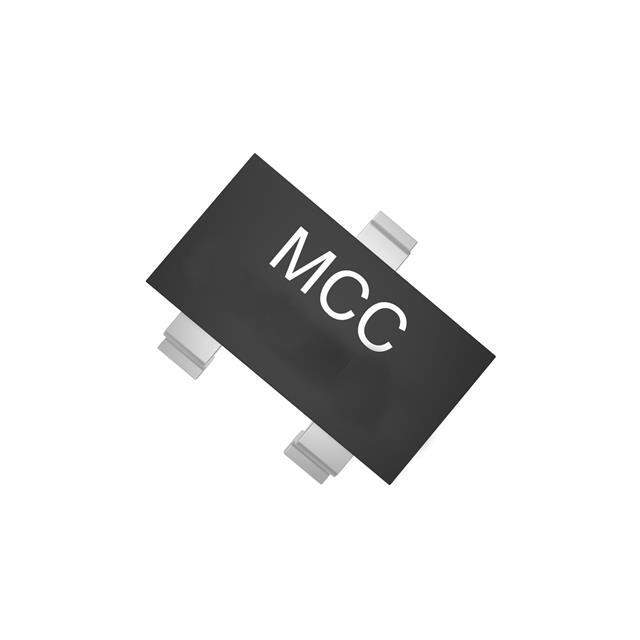

BAT54S-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54S-TP

Part No BAT54S-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT23 / 200mWatt, 30Volt Schottky Barrier Diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Micro Commercial Co
Packaging Reel
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Maximum) at If 1V at 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage at Vr 2μA at 25V
Operating Temperature - Junction -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Part Number Series BAT54S
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803620-BAT54S-TP
Ultra Librarian 3D Model Ultra Librarian BAT54S-TP CAD Model

Description

The Micro Commercial Co BAT54S-TP is a Schottky diode with a reverse recovery time of 5ns.

  • Maximum DC Reverse Voltage: 30V
  • Voltage Forward: 1V @ 100mA
  • Average Rectified Current: 200mA (DC) per diode
  • Current Reverse Leakage: 2μA @ 25V
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (unlimited)
