Same model may have multiple batches, images only for reference.

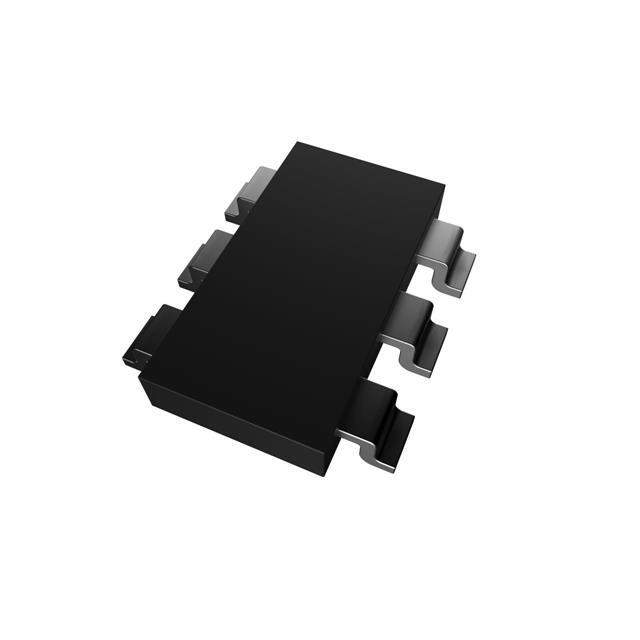

MMBD4448HAQW-TP Real Image
Same model may have multiple batches, images only for reference.

MMBD4448HAQW-TP

Part No MMBD4448HAQW-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 80V 250MA SOT363
Datasheet
MMBD4448HAQW-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Configuration 2 Pair Common Anode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 80V
Current - Average Rectified (Io) (per Diode) 250mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 150mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 100nA @ 70V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package SOT-363
Win Source Part Number 1078238-MMBD4448HAQW-TP
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian MMBD4448HAQW-TP CAD Model

Description

The Micro Commercial Co MMBD4448HAQW-TP is a standard diode manufactured by Micro Commercial Co.

  • Mounting: SMD (SMT)
  • Packaging: reel - TR
  • Maximum DC Reverse Voltage: 80V
  • Forward Voltage: 1.25V @ 150mA
  • Reverse Recovery Time: 4ns
  • Current Reverse Leakage @ Vr: 100nA @ 70V
  • Diode Configuration: 2 Pair Common Anode
  • Average Rectified Current per Diode: 250mA
  • Operating Temperature Range: up to 150°C
  • Category: Discrete Semiconductor Products
  • Recovery Speed: fast recovery = 200mA (Io)
  • Product Status: currently active
  • Popularity: medium
  • Quantity: 3k pcs
