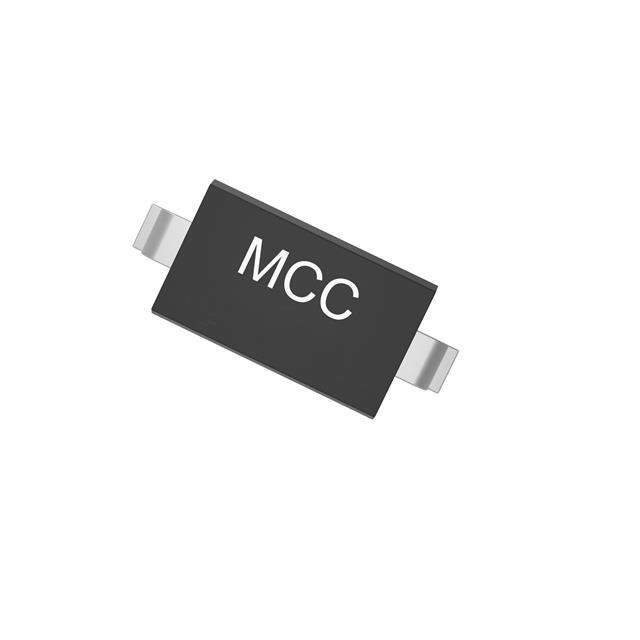

SMD22WS-TP Real Image
Same model may have multiple batches, images only for reference.

SMD22WS-TP

Part No SMD22WS-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Datasheet
SMD22WS-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Micro Commercial Co
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 20 V
Capacitance @ Vr, F 120pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SMD22
Other Names SMD22WS-TPMSDKR,SMD22WS-TPMSTR,SMD22WS-TPMSCT
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282460-SMD22WS-TP
Ultra Librarian 3D Model Ultra Librarian SMD22WS-TP CAD Model

Description

The SMD22WS-TP is a Schottky diode from Micro Commercial Co.

  • Voltage Rating: 20V
  • Current Rating: 2A
  • Recovery Time: Fast (< 500ns)
  • Forward Voltage: 550mV @ 2A
  • Reverse Leakage Current: 100μA @ 20V
  • Capacitance: 120pF @ 4V and 1MHz
  • Package: SOD-323
  • Tolerance: ±5%
  • Operating Temperature Range: -55°C to 125°C
  • Ideal for: Power supplies, voltage regulators, and protection circuits
