Same model may have multiple batches, images only for reference.

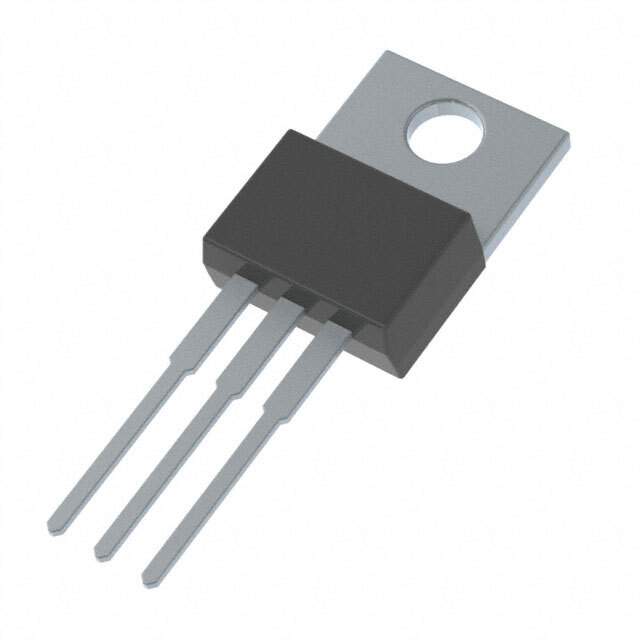

TIP32-BP Real Image
Same model may have multiple batches, images only for reference.

TIP32-BP

Part No TIP32-BP
Manufacturer Micro Commercial Co
Catalog Transistors (BJT) - Single
Description TRANS PNP 40V 3A TO-220
Datasheet
TIP32-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Tube/Rail
Status Active
Transistor Polarity PNP
Maximum Current Collector 3A
VCEO Maximum Collector-Emitter Breakdown Voltage 40V
Max Vce (sat) 1.2V @ 375mA, 3A
Collector Cut-off Current(Max) 300μA
Typical Gain (hFE) (Min) 10 @ 3A, 4V
Maximum Power Dissipation 2W
Frequency - Transition 3MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-220
Win Source Part Number 139418-TIP32-BP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian TIP32-BP CAD Model

Description

The Micro Commercial Co 139418-TIP32-BP is a PNP transistor that is designed for use in a variety of applications.

  • Maximum collector-emitter breakdown voltage: 40V
  • Maximum current collector: 3A
  • Frequency transition: 3MHz
  • Typical gain: 10 @ 3A, 4V
  • Maximum power dissipation: 2W
  • Operating temperature range: 150°C (TJ)
  • Package contains: 1k pcs
