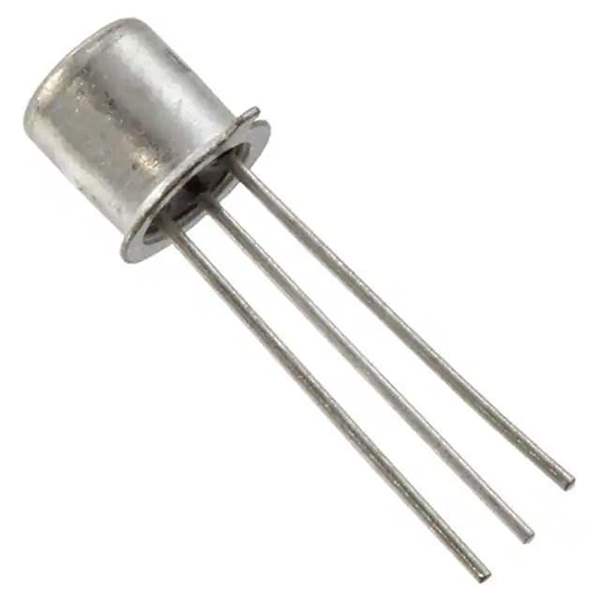

Product Overview: 2N2222AP NPN Transistor by Microchip Technology

The 2N2222AP from Microchip Technology is a versatile NPN bipolar junction transistor (BJT) renowned for its high-speed switching capabilities and reliability. This industry-standard component is ideal for a wide range of applications, from amplification to switching circuits in both commercial and military environments.

Key Features:

• Voltage Ratings: The 2N2222AP is designed to handle a collector-emitter voltage (Vce) of up to 30V, and a collector-base voltage (Vcb) of up to 60V, making it suitable for medium voltage applications.
• Current Handling: This transistor can manage a continuous collector current (Ic) of up to 800mA, allowing it to drive moderate loads in a circuit.
• Power Dissipation: With a power dissipation rating of 500mW, the 2N2222AP can safely dissipate heat generated during operation without compromising its performance.
• Gain Performance: It boasts a high current gain (hFE), typically around 100, providing a good amplification factor for various electronic signals.
• Robust Packaging: The device is available in a TO-18 metal can package, which not only protects the internal semiconductor but also offers excellent thermal properties for better heat dissipation.

Typical Applications:

The 2N2222AP is a highly adaptable component that can be used in numerous circuit designs. Some of its common applications include:

• Switching and linear amplification in audio devices.
• Driver circuits for relays, solenoids, and other inductive loads.
• Signal processing in communication devices.
• General purpose switching in consumer electronics.
• Voltage regulation circuits.

Quality and Reliability:

Microchip Technology's commitment to quality ensures that the 2N2222AP meets stringent standards for performance and reliability. Whether for hobbyist projects or critical military applications, this transistor is a go-to choice for designers seeking a dependable and efficient solution.
