Product Overview: 2N2369 Bipolar Transistor

The 2N2369 is a classic bipolar junction transistor (BJT) from Microchip Technology. Renowned for its high-speed switching capabilities, this small-signal NPN transistor is a staple in various electronic circuits. The 2N2369 is designed for general-purpose switching and amplifier applications, making it a versatile component for a wide array of electronic designs.

Key Features

• Voltage Ratings: The 2N2369 is capable of withstanding a collector-emitter voltage (V<sub>CEO) of up to 40V, and a collector-base voltage (V<sub>CBO) of 60V, ensuring stable performance in circuits with moderate voltage levels.
• Current Handling: This transistor can handle continuous collector currents up to 200 mA, making it suitable for driving small loads or for use in signal processing applications.
• High-Speed Switching: With a transition frequency (f<sub>T) typically at 250 MHz, the 2N2369 is optimized for high-speed switching, which is essential for applications requiring rapid state changes.

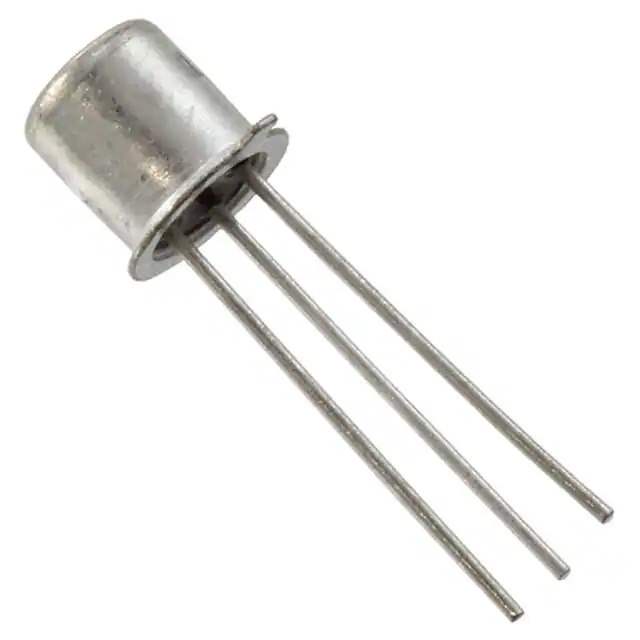

• TO-18 Metal Can Package: The transistor is encapsulated in a TO-18 metal can package, which offers not only a compact design but also robustness and effective thermal performance for better reliability.

Applications

The 2N2369 transistor is commonly used in:

• General-purpose amplification circuits
• Digital logic circuits
• Signal processing
• Switching applications
• Timing circuits and oscillators

Quality and Reliability

Microchip Technology is committed to delivering high-quality components. The 2N2369 transistor is manufactured to stringent quality standards, ensuring reliable performance for industrial, commercial, and hobbyist applications alike. Whether you're designing a new circuit or replacing a component in an existing one, the 2N2369 offers the performance and reliability you can trust.
