Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 29 Weeks
Features Bipolar (BJT) Transistor PNP 60 V 600 mA - 500 mW Surface Mount UB
Manufacturer Microchip Technology
Package Bulk
Operating Temperature Range -65°C ~ 200°C (TJ)
Mounting Surface Mount
Package 3-SMD, No Lead
Case / Package UB
Family Name 2N2907
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906241-2N2907AUB
Ultra Librarian 3D Model Ultra Librarian 2N2907AUB CAD Model

Description

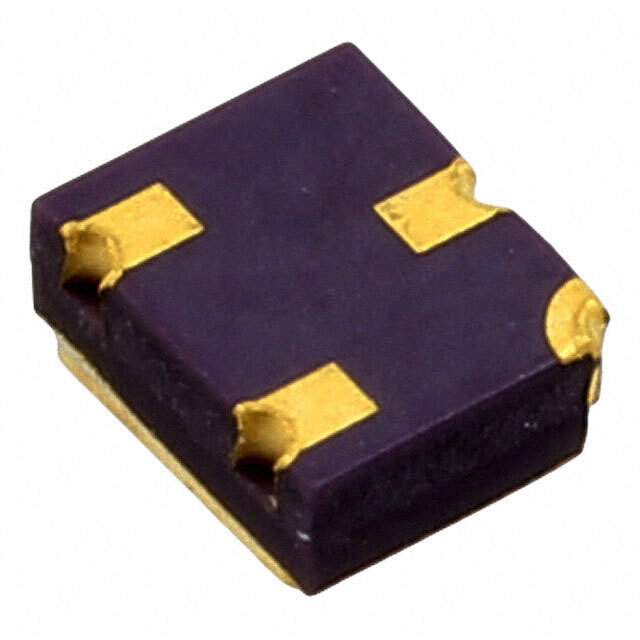

Microchip Technology 2N2907AUB PNP Transistor

The 2N2907AUB from Microchip Technology is a PNP bipolar junction transistor (BJT) designed for high-speed switching applications and general-purpose amplification. Encased in a small, surface-mount UBS package, this transistor is ideal for space-constrained designs where board real estate is at a premium.

Key Features

  • Type: PNP BJT
  • Package: UBS (Micro-X)
  • Collector-Emitter Voltage (VCEO): 60V
  • Collector-Base Voltage (VCBO): 60V
  • Emitter-Base Voltage (VEBO): 5V
  • Collector Current (IC): 600mA
  • Power Dissipation (Pd): 400mW
  • DC Current Gain (hFE): 100-300 at IC=150mA
  • Operating Temperature Range: -55°C to +150°C

The 2N2907AUB transistor's robustness is evident in its ability to handle a continuous collector current of up to 600mA, making it suitable for moderate power applications. With a collector-emitter voltage of 60V, it can comfortably operate in circuits with higher working voltages. The device also boasts a high current gain, ensuring efficient current amplification in various electronic circuits.

Applications

The 2N2907AUB is versatile and can be used in a broad array of applications including, but not limited to:

  • Signal amplification
  • Switching circuits
  • Linear amplification stages
  • Power regulators
  • Motor controls
  • Audio amplifiers

Microchip Technology's commitment to quality ensures that the 2N2907AUB meets stringent performance criteria, making it a reliable choice for both commercial and industrial electronic designs. Whether you're developing consumer electronics, automotive systems, or industrial automation equipment, the 2N2907AUB offers the efficiency and reliability you need in a compact, surface-mount form factor.

With its combination of high-speed switching capabilities, power handling, and small package size, the 2N2907AUB from Microchip Technology is an excellent choice for designers looking to optimize their circuit designs without compromising on performance.
