Microchip Technology's 2N3764 Bipolar Transistor

The 2N3764 is a versatile NPN bipolar junction transistor (BJT) designed and manufactured by Microchip Technology, a leading provider of microcontroller and analog semiconductors. This transistor is well-suited for a wide range of applications, from amplification to switching, in various electronic circuits.

Key Features of the 2N3764:

• Voltage Ratings: The 2N3764 has a collector-emitter voltage (VCEO) rating of 60V, which makes it suitable for medium voltage applications.
• Current Handling: It can handle a continuous collector current (IC) of up to 1A, allowing it to drive moderate loads.
• Power Dissipation: With a power dissipation of 800mW, the 2N3764 can sustain moderate power levels, making it reliable for continuous operation in your circuit designs.
• Gain Bandwidth Product: It offers a transition frequency (fT) of 150MHz, which indicates good performance in high-frequency applications.

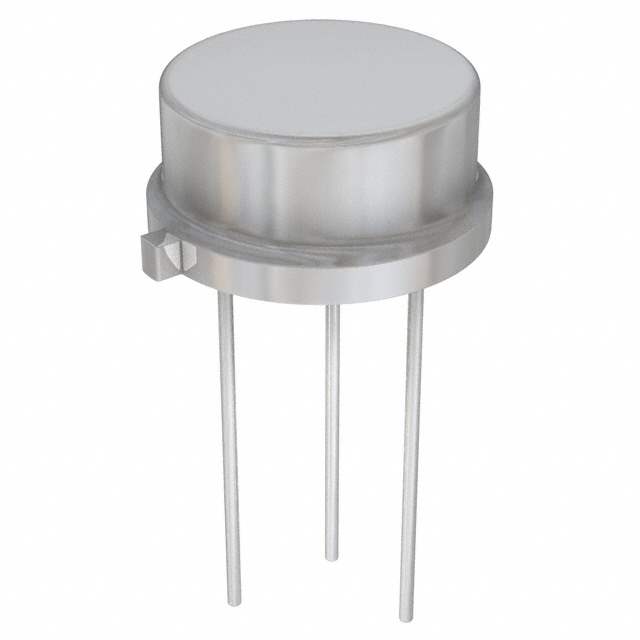

• TO-39 Package: Encased in a metal TO-39 package, the 2N3764 ensures robustness and good heat dissipation, which is crucial for maintaining stability and extending the lifespan of the device.

Applications:

The 2N3764 is an excellent choice for a variety of electronic applications, including:

• Audio amplifiers and pre-amplifiers
• Signal processing
• Power regulation circuits
• Switching networks
• Driver stages in high-fidelity sound systems

Reliability and Performance:

Microchip Technology's commitment to quality ensures that the 2N3764 transistor meets stringent standards for reliability and performance. Its robust construction and proven design make it a preferred choice for engineers and hobbyists alike. Whether you're working on a DIY project or a commercial product, the 2N3764 offers the functionality and durability you need to create efficient and reliable electronic designs.

For detailed specifications, application notes, and additional resources, visit Microchip Technology's official website or consult the 2N3764 datasheet. Ensure your design meets the required standards by incorporating this reliable transistor into your next project.
