2N3766

Part No 2N3766
Manufacturer Microchip Technology
Catalog Transistors (BJT) - Single
Description TRANS NPN 60V 500UA TO66
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Microchip Technology
Package Bulk
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 500 µA
Voltage - Collector Emitter Breakdown (Max) 60 V
Vce Saturation (Max) @ Ib, Ic 2.5V @ 100mA, 1A
Current - Collector Cutoff (Max) 500µA
DC Current Gain (hFE) (Min) @ Ic, Vce 40 @ 500mA, 5V
Power - Max 25 W
Temperature Range - Operating -65°C ~ 200°C (TJ)
Mounting Type Through Hole

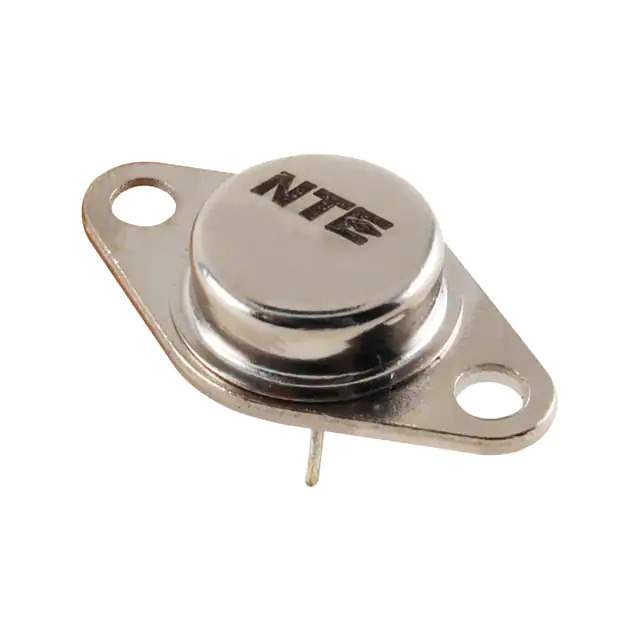

Package / Case TO-213AA, TO-66-2
Supplier Device Package TO-66 (TO-213AA)
Standard Package 1 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 541092-2N3766
Ultra Librarian 3D Model Ultra Librarian 2N3766 CAD Model

Description

Microchip Technology's 2N3766 Product Overview

The 2N3766 is a high-quality bipolar junction transistor (BJT) from Microchip Technology, a global leader in microcontroller and analog semiconductors. This NPN transistor is designed for general-purpose amplification and switching applications, making it a versatile component for a wide range of electronic circuits.

Key Features

  • Device Type: NPN Bipolar Junction Transistor (BJT)
  • High Current Gain Bandwidth Product: Ensures efficient performance in amplification applications.
  • Collector-Emitter Voltage (VCEO): Capable of withstanding moderate voltage levels in operation.
  • Collector Current (IC): Suitable for handling a substantial amount of current.
  • Power Dissipation: Adequate thermal performance for a range of applications.
  • Operating Temperature Range: Designed to perform reliably in varied environmental conditions.

Applications

The 2N3766 transistor is ideal for a myriad of applications, including:

  • Audio amplifiers and pre-amplifiers
  • Signal processing
  • Switching circuits
  • Power regulators
  • Driver stages in hi-fi amplifiers and television circuits

Reliability and Quality

Microchip Technology is renowned for its commitment to quality and reliability, and the 2N3766 is no exception. Each transistor is manufactured to the highest standards to ensure consistent performance and longevity. Whether for commercial, industrial, or military use, the 2N3766 is designed to meet the rigorous demands of any application.

Technical Support and Resources

Customers can access comprehensive technical support for the 2N3766, including datasheets, reference designs, and application notes. Microchip's dedicated support team is also available to assist with product selection, design integration, and troubleshooting to streamline development and help bring products to market faster.
