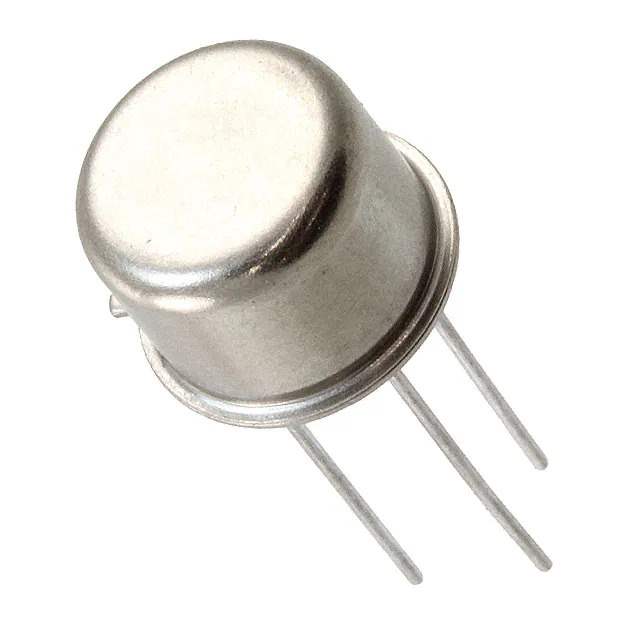

Microchip Technology 2N4150 Transistor

The 2N4150 is a high-performance, versatile transistor from Microchip Technology, designed for a wide range of applications in modern electronic circuits. This small-signal bipolar junction transistor (BJT) is specifically engineered to deliver reliable and efficient performance in various configurations and operating conditions.

Key Features:

• Type: NPN - The 2N4150 is an NPN transistor, which means it is designed to pass electrons from the emitter to the collector, making it suitable for amplification and high-speed switching applications.
• Voltage Ratings: It can handle moderate voltage levels, with a Collector-Emitter Voltage (VCEO) of 45V, which makes it suitable for many signal-level applications.
• Current Capacity: With a Continuous Collector Current (IC) rating of 500mA, the 2N4150 can drive small loads directly and is capable of handling decent power levels for its size.
• Power Dissipation: It has a Power Dissipation (PD) of 800mW, which allows it to dissipate heat efficiently during operation, ensuring stability and longevity.
• Gain Bandwidth Product (fT): The transistor offers a transition frequency of 250MHz, which indicates a good response for high-frequency applications.

Applications:

The versatility of the 2N4150 makes it a solid choice for a variety of electronic applications, including:

• Audio Amplifiers: Its ability to amplify signals makes it suitable for use in small audio amplification circuits.
• Switching Circuits: The fast switching response of the 2N4150 is ideal for digital and logic circuitry.
• Signal Processing: Due to its high bandwidth, it can be used in signal processing applications where rapid response is necessary.
• Voltage Regulation: It can be a component in voltage regulator circuits to maintain a stable output voltage.

Microchip Technology's 2N4150 transistor is a testament to the company's commitment to providing high-quality components that meet the needs of modern electronics. With its robust design and electrical characteristics, the 2N4150 is a reliable choice for designers and engineers looking for a general-purpose transistor that offers both performance and versatility.
