Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr Microchip Technology
Package Tube
Product Status Active
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 170 A
Current - Collector Pulsed (Icm) 340 A
Vce(on) (Max) @ Vge, Ic 3.2V @ 15V, 85A
Power - Max 962 W
Switching Energy 6mJ (on), 3.8mJ (off)
Input Type Standard
Gate Charge 660 nC
Td (on/off) @ 25°C 43ns/300ns
Test Condition 600V, 85A, 4.3Ohm, 15V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-264-3, TO-264AA
Supplier Device Package TO-264
Base Product Number APT85GR120
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 564225-APT85GR120L
Ultra Librarian 3D Model Ultra Librarian APT85GR120L CAD Model

Description

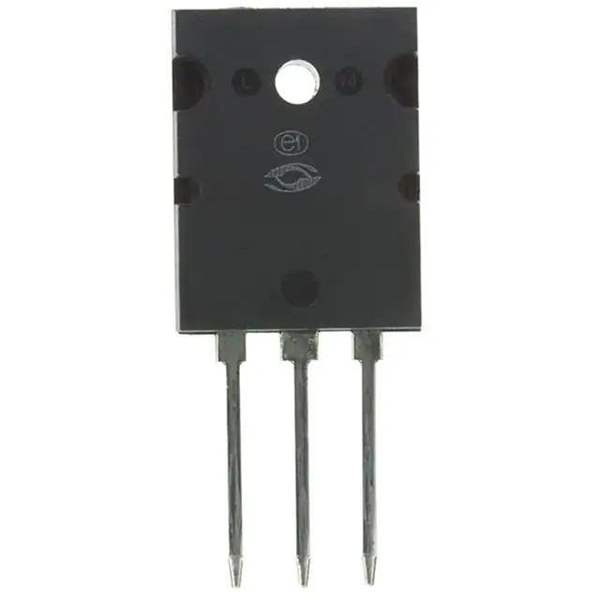

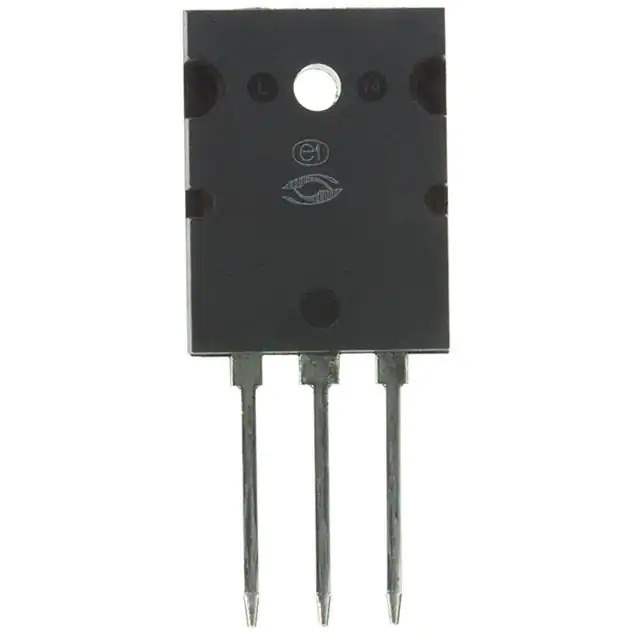

The APT85GR120L is a high-performance Insulated Gate Bipolar Transistor (IGBT) designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This IGBT is engineered to meet the demanding requirements of high-power switching applications, providing a combination of fast switching, high efficiency, and robust performance.

Key Features

  • High Voltage Capacity: With a collector-emitter voltage (Vce) of 1200V, the APT85GR120L is suitable for a wide range of high-voltage applications.
  • High Current Rating: The device can handle continuous collector currents (Ic) up to 85A, making it ideal for high-power circuits.
  • Low On-Resistance: The low on-state voltage drop (Vce(on)) minimizes conduction losses and improves overall efficiency.
  • Fast Switching Speed: The APT85GR120L offers fast switching characteristics, which are critical for reducing switching losses and improving performance in high-frequency applications.
  • Robust Design: The device is designed to withstand rugged operating conditions and provides excellent reliability.
  • Easy to Drive: The IGBT is designed with a positive temperature coefficient, which simplifies the drive circuitry and paralleling of devices.

Applications

The versatility of the APT85GR120L allows it to be used in a variety of applications, including:

  • Power inverters and converters
  • Motor drives
  • Uninterruptible power supplies (UPS)
  • Induction heating systems
  • Renewable energy systems, such as solar inverters and wind turbines

Technical Specifications

Parameter Value Collector-Emitter Voltage (Vce) 1200V Continuous Collector Current (Ic) 85A Power Dissipation (Pd) 780W Operating Junction Temperature (Tj) -55°C to +150°C

Overall, the APT85GR120L IGBT from Microchip Technology offers a compelling solution for designers seeking high efficiency, reliability, and performance in their power management systems.
