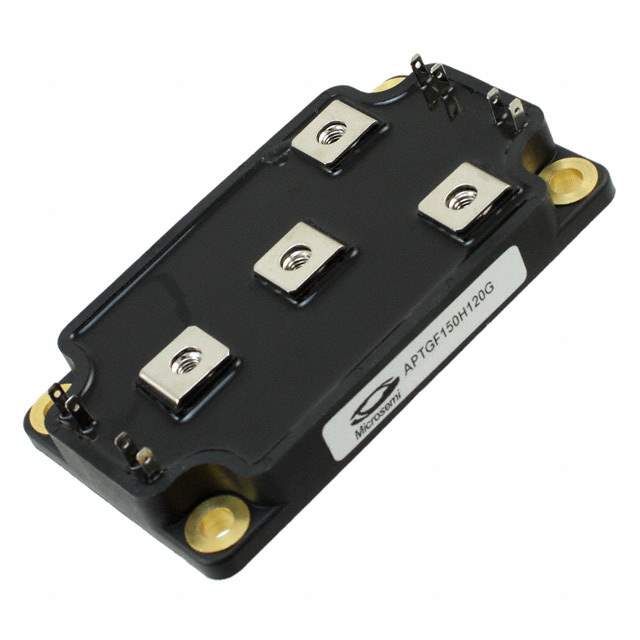

Microchip Technology's APTGF150H120G Power Module

The APTGF150H120G is a state-of-the-art power module designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This high-performance module is part of the IGBT (Insulated Gate Bipolar Transistor) family, which is renowned for its efficiency in handling high voltages and currents with exceptional speed and control. The APTGF150H120G is specifically engineered to meet the demanding requirements of a wide range of power electronic applications, including motor drives, uninterruptible power supplies (UPS), and inverters for renewable energy systems.

The module boasts a maximum collector-emitter voltage of 1200V, with a continuous collector current rating of 150A at 25°C. This combination of high voltage and current capabilities makes it an ideal choice for applications that require robust power handling. Additionally, the APTGF150H120G features a low saturation voltage and low switching losses, which contribute to its high efficiency and reliability during operation.

One of the key attributes of the APTGF150H120G is its IGBT technology, which combines the simple gate-drive characteristics of MOSFETs with the high-current and low-saturation-voltage capability of bipolar transistors. This hybrid technology allows for greater power density and better thermal performance, which is critical in high-power applications. The module is also equipped with a fast and soft recovery anti-parallel diode, which minimizes switching noise and reduces electromagnetic interference (EMI), thereby improving the overall performance and longevity of the system.

The APTGF150H120G comes in a rugged package designed to withstand harsh environmental conditions, ensuring reliability and durability. Its design also allows for easy installation and maintenance, which is a significant advantage in complex power systems. With its high efficiency, robust performance, and reliability, the APTGF150H120G from Microchip Technology is an excellent choice for designers looking to optimize their power systems for maximum performance and longevity.

Key Features:

• 1200V Maximum Collector-Emitter Voltage
• 150A Continuous Collector Current at 25°C
• Low Saturation Voltage
• Low Switching Losses
• IGBT Technology for High Power Density
• Fast and Soft Recovery Anti-Parallel Diode
• Rugged and Reliable Package
