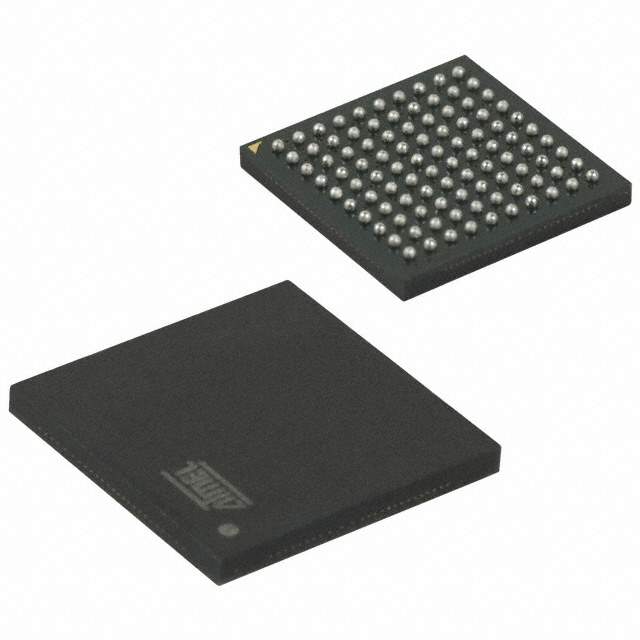

Microchip Technology AT91SAM7X128-CU Overview

The AT91SAM7X128-CU is a robust microcontroller unit (MCU) from Microchip Technology, designed to cater to the demanding needs of embedded systems. It is part of the AT91SAM7X series, which is renowned for its high performance and connectivity features. This MCU is built on the powerful ARM7TDMI® processor core, which operates at a maximum speed of 55 MHz, providing the computational power necessary for complex tasks and applications.

With 128KB of high-speed Flash memory, the AT91SAM7X128-CU offers ample space for application code and data storage. The Flash memory is complemented by 32KB of SRAM, ensuring efficient handling of temporary data and variables during runtime. The MCU's memory architecture is designed to support deterministic execution and quick access times, which is crucial for real-time applications.

One of the standout features of the AT91SAM7X128-CU is its extensive set of peripherals. It includes a 10/100 Ethernet MAC for network connectivity, making it ideal for IoT applications and devices that require internet access. Additionally, it has two USB 2.0 full-speed (12 Mbps) ports, which support device, host, and OTG configurations, providing versatile connectivity options for a range of peripherals.

The AT91SAM7X128-CU also boasts a variety of serial communication interfaces, such as UARTs, SPI, and I2C, enabling it to communicate with other chips and modules in a system. This versatility allows designers to integrate the MCU into complex designs that require multiple communication standards.

Security is a priority in the design of the AT91SAM7X128-CU, featuring a hardware-based Random Number Generator (RNG) for secure data encryption. The chip also supports a range of power-saving modes, which is essential for battery-operated devices that need to maximize energy efficiency.

Microchip Technology has equipped the AT91SAM7X128-CU with an extensive interrupt controller, allowing for fast response to peripheral events. The MCU is available in a 100-pin LQFP package, which is suitable for space-constrained applications that require a compact footprint without sacrificing performance or features.

In summary, the AT91SAM7X128-CU is a feature-rich, high-performance microcontroller that offers a perfect blend of connectivity, memory, security, and power efficiency, making it a top choice for designers in the industrial, consumer, and IoT markets.
