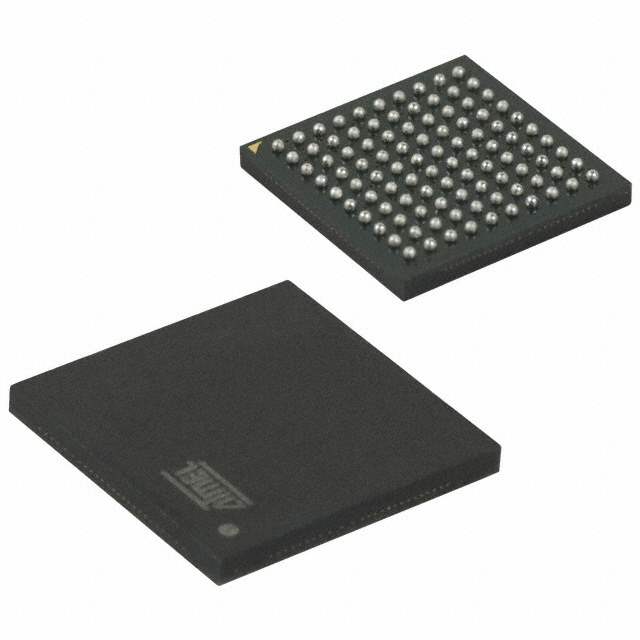

Microchip Technology's AT91SAM7X256C-CU: High-Performance Embedded MCU

The AT91SAM7X256C-CU is a robust ARM7TDMI-based microcontroller (MCU) brought to the market by Microchip Technology, a leader in smart, connected, and secure embedded control solutions. This MCU is specifically designed for networked applications and offers a perfect balance between computing performance, feature integration, and cost-effectiveness, making it an ideal choice for a wide range of industrial and consumer applications.

Core Features

• High-Performance Processor: At the heart of the AT91SAM7X256C-CU lies an ARM7TDMI processor core, which operates at up to 55 MHz, delivering the computational power needed for complex algorithms and control tasks.
• Memory: The device includes 256KB of high-speed flash memory and 64KB of SRAM, providing ample storage for application code and data without the need for external memory components.
• Connectivity: With an Ethernet MAC 10/100 base-T and two USARTs, the MCU is well-suited for networked applications, ensuring efficient communication in connected systems.
• Peripheral Set: The AT91SAM7X256C-CU is equipped with a rich set of peripherals, including USB 2.0 full-speed device and host interfaces, SPI, SSC, TWI (I2C), and multiple timers, which allow for versatile system designs.
• Power Efficiency: The MCU supports multiple power-saving modes, including Idle and Power-down, which help to minimize power consumption in battery-operated devices.

Advanced Integration

Designed to facilitate rapid development and deployment, the AT91SAM7X256C-CU integrates features such as a 10-bit ADC and 2 DACs, providing essential analog interfaces for sensors and actuators. The MCU also offers a complete system protection suite with a watchdog timer, brownout detector, and real-time timer, ensuring reliable operation under varying conditions.

Development Support

Microchip Technology provides comprehensive support for the AT91SAM7X256C-CU through its software and hardware development tools. Developers can take advantage of the extensive software libraries, development kits, and the integrated development environment (IDE) to streamline the design process and bring products to market faster.

Whether it's for industrial control systems, networking equipment, or smart IoT devices, the AT91SAM7X256C-CU is a versatile and powerful microcontroller that offers an optimal solution for engineers looking to leverage the performance and efficiency of ARM7TDMI architecture.
