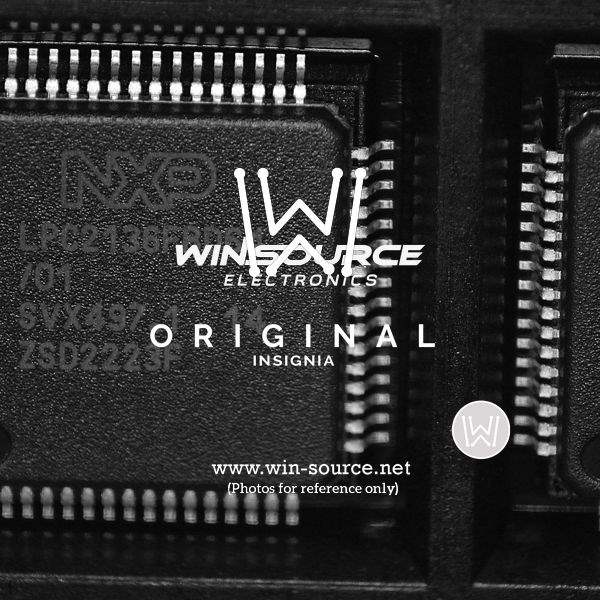

The NXP LPC2136FBD64/01,15 is a robust microcontroller that is part of the LPC2100 family, designed to offer a versatile range of features for embedded applications. This microcontroller is based on a 32-bit ARM7TDMI-S CPU which provides high-performance and low power consumption, making it ideal for industrial control, medical systems, and other embedded utilities.

Key Features:

• CPU: 32-bit ARM7TDMI-S processor, offering a perfect balance between processing power and power efficiency.
• Memory: Comes with 256 KB of on-chip flash memory and 16 KB of static RAM, providing ample space for complex applications and software.
• Speed: Operates at a maximum frequency of 60 MHz, delivering the computational speed needed for real-time processing.
• I/O Ports: Features multiple 32-bit timers, an RTC, 45 fast GPIO lines, two UARTs, two I2C-bus interfaces, and two SPI interfaces, allowing for flexible connection to peripheral devices.
• PWM: Includes a PWM unit for precise control over motor functions and other variable control systems.
• Analog to Digital Converter (ADC): Equipped with a 10-bit ADC with multiple channels for accurate measurement and monitoring of analog signals.
• Package: Housed in a compact 64-pin LQFP package, designed for space-efficient PCB layouts.
• Power Management: Features multiple power-saving modes, including Idle and Power-down modes, to ensure efficient power usage.

Applications:

The LPC2136FBD64/01,15 microcontroller is versatile enough to be used in a wide range of applications. Its powerful ARM core, combined with rich peripheral set and power efficiency, makes it suitable for:

• Industrial control systems
• Medical devices
• Automotive electronics
• Utility meters
• Alarm systems
• Embedded soft modems
• Complex system controllers

Overall, the NXP LPC2136FBD64/01,15 microcontroller is a reliable and cost-effective solution for designers looking to integrate a powerful ARM-based processor with a rich set of peripherals into their embedded systems.
